heavy press brakes WAD/WADF

The image is for reference. Actual appearance and configuration may vary.

Force, kN: 4000–8000
Bending length, mm: 3200–10000
Control: CNC

400T/3200, 400T/4000, 400T/5000, 400T/6000, 500T/4000, 500T/5000, 500T/6000, 600T/4000, 600T/5000, 600T/6000, 600T/7000, 700T/6000, 800T/6000, 800T/7000, 800T/8000, 800T/10000

A family for long, thick plate and large components. Published standard variants are complemented by separately engineered heavy configurations.

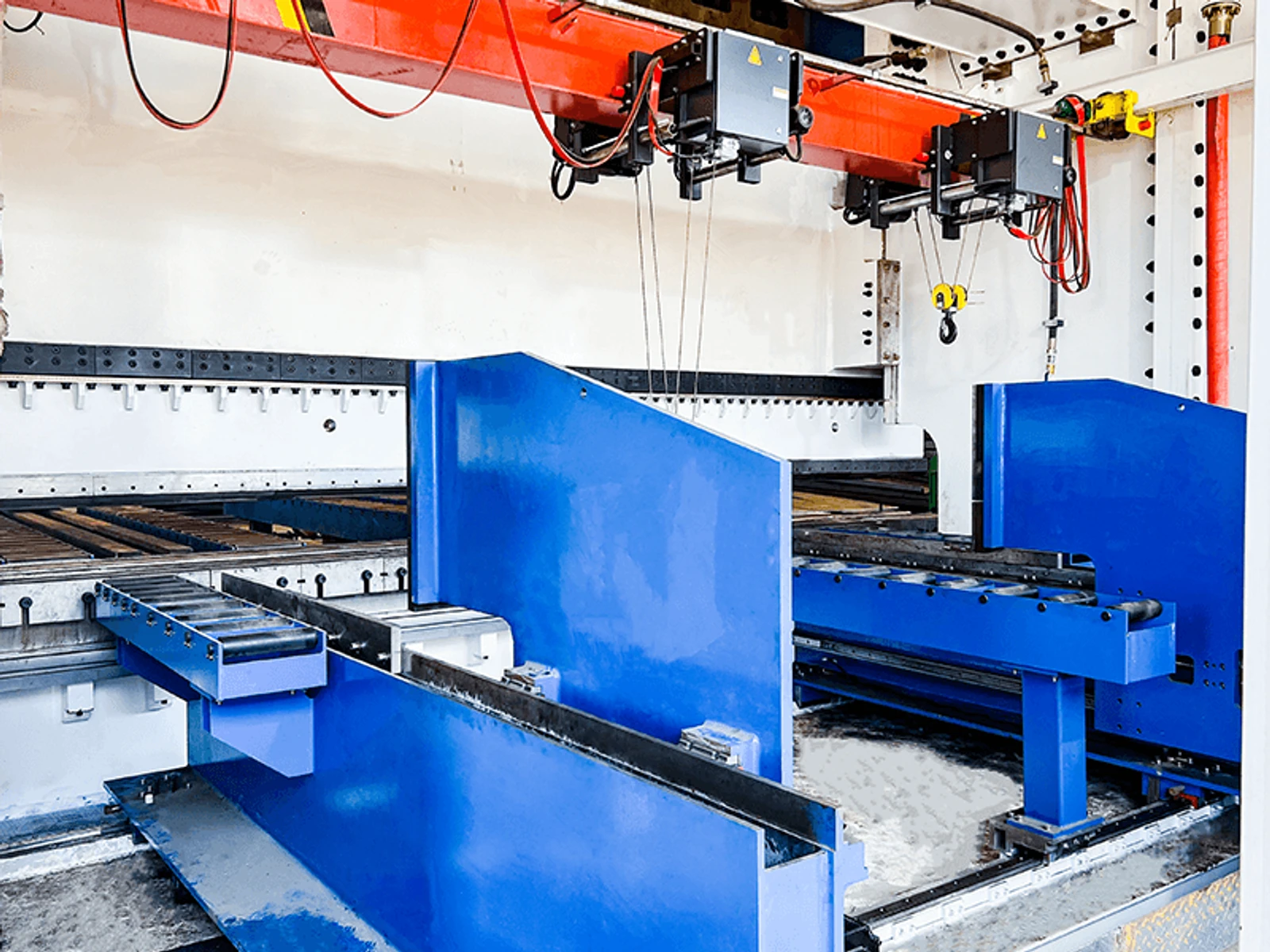

A reinforced welded frame, CNC control and crowning work with tooling and backgauges. Front feeding devices may be used for heavy blanks. Their length, load capacity and movements belong to the specific project, not every machine in the family.

Discuss configuration

Purpose and distinguishing features

Suitable applications

Metal structures, supports, heavy-machine components, large profiles and energy-equipment parts. Feeding, supporting and unloading these products can affect the cycle as much as bending itself.

WAD/WADF heavy press brakes

For heavy WAD/WADF machines, workpiece handling can matter as much as force. Large parts need support while turning, space behind the tooling and a clear removal path. Assess the most difficult bend, not only a long straight part at maximum thickness.

Technical specifications

WAD/WADF heavy press brakes
Model	Force, kN	Bending length, mm	Approach speed, mm/s	Ram working speed, mm/s	Return speed, mm/s	Distance between columns, mm	Throat depth, mm	Ram stroke, mm	Daylight, mm	Main motor, kW	Machine weight, t	Dimensions L × W × H, mm
400T/3200	4000	3200	80	8	80	2600	500	300	610	30	23	380027003500
400T/4000	4000	4000	80	8	80	3100	500	300	610	30	30	460027003500
400T/5000	4000	5000	80	8	80	3800	500	300	610	30	32	560027003500
400T/6000	4000	6000	80	8	80	4800	500	300	610	30	38	660027003500
500T/4000	5000	4000	80	8.5	90	3100	500	300	610	37	37	460027003500
500T/5000	5000	5000	80	8.5	90	3800	500	300	610	37	42	560027003500
500T/6000	5000	6000	80	8.5	90	4800	500	300	610	37	48	660027003600
600T/4000	6000	4000	80	8.5	85	3100	600	320	650	45	48	460033003900
600T/5000	6000	5000	80	8.5	85	3800	600	320	650	45	52	560033003900
600T/6000	6000	6000	80	8.5	85	4800	600	320	650	45	58	660033003900
600T/7000	6000	7000	80	8.5	85	5600	600	320	650	45	68	760033003900
700T/6000	7000	6000	80	8.5	85	4900	600	320	700	55	78	660035004000
800T/6000	8000	6000	80	8	90	4600	600	320	800	30*2	79	660035004000
800T/7000	8000	7000	80	8	90	5600	600	320	800	30*2	—	760035004200
800T/8000	8000	8000	80	8	90	6600	600	320	800	30*2	—	860036004500
800T/10000	8000	10000	80	8	90	7800	600	320	800	30*2	—	1060036004900

Choosing a configuration

The table contains published 400–800 t variants. The photograph shows a separately engineered WAD-3000T/9000 configuration; its full specifications are not copied from smaller presses. For every format we check force over the required length, die, throat, daylight, bend sequence and part extraction.

Force, working length, tooling, gauges, crowning, supports and feeding automation. Machine weight, transport, foundation, lifting equipment and maintenance access need separate planning. The project starts with product drawings, not just a preferred tonnage.

Discuss configuration

Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.

Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
