CNC press brake WAD

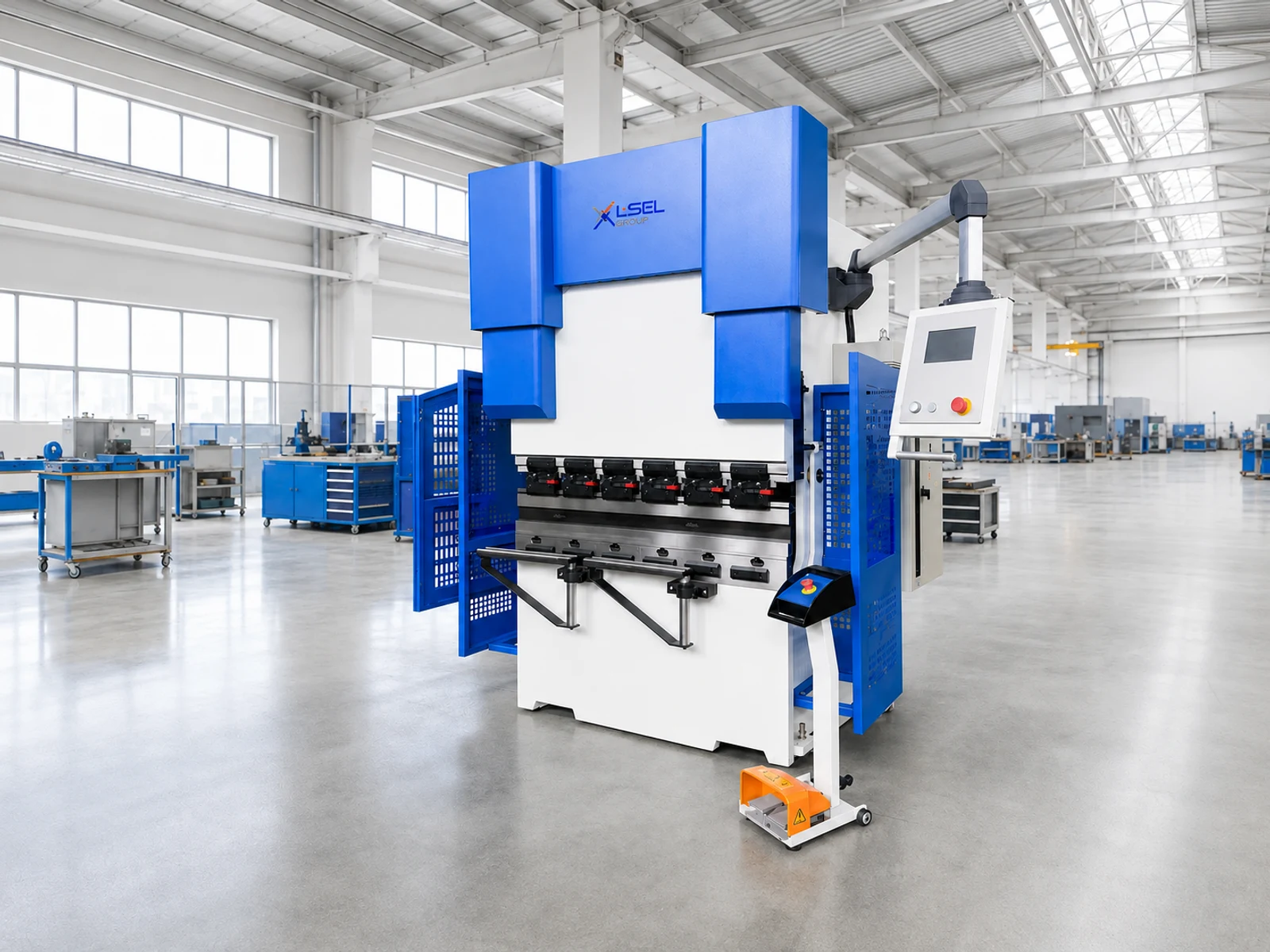

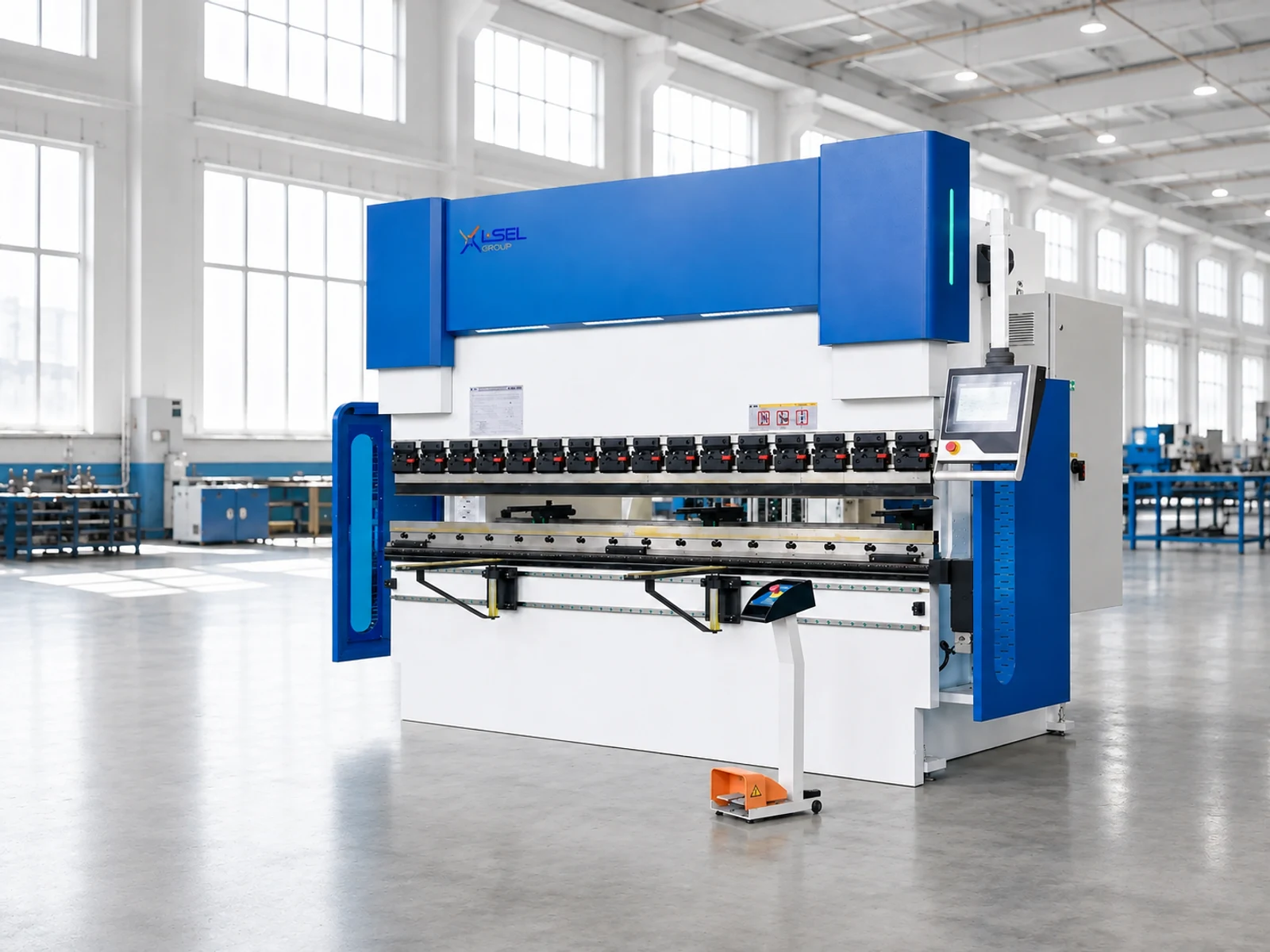

The image is for reference. Actual appearance and configuration may vary.

Force, kN: 500–8000
Bending length, mm: 1300–10000
Control: CNC

WAD 50T/1300, WAD 50T/2000, WAD 70T/1600, WAD 70T/2500, WAD 70T/3200, WAD 80T/2500, WAD 110T/2500, WAD 110T/3200, WAD 110T/4000, WAD 110T/4100, WAD 135T/3200, WAD 135T/4000, WAD 135T/4100, WAD 170T/2500, WAD 170T/3200, WAD 170T/4000, WAD 170T/4100, WAD 220T/2500, WAD 220T/3200, WAD 220T/4000, WAD 220T/5000, WAD 250T/2500, WAD 250T/3200, WAD 250T/4000, WAD 250T/5000, WAD 250T/6000, WAD 300T/3200, WAD 300T/4000, WAD 300T/5000, WAD 300T/6000, WAD 400T/3200, WAD 400T/4000, WAD 400T/5000, WAD 400T/6000, WAD 400T/8000, WAD 500T/4000, WAD 500T/5000, WAD 500T/6000, WAD 600T/3200, WAD 600T/4000, WAD 600T/5000, WAD 600T/6000, WAD 600T/7000, WAD 700T/6000, WAD 800T/6000, WAD 800T/7000, WAD 800T/8000, WAD 800T/10000

Electro-hydraulic synchronisation and CNC control for repeatable bending. Force and working length are selected for your parts and tooling.

Electrohydraulic control coordinates ram movement, while the backgauge positions the blank between bends. Crowning helps adjust the angle along a long part; the result also depends on material, tooling and process. Axis package, controller, clamps and protection are configuration-specific. The table describes press geometry: throat, stroke and daylight matter for boxes and tall flanges as much as bending length.

Discuss configuration

Purpose and distinguishing features

Suitable applications

Enclosures, panels, profiles and other sheet metal parts. Selection depends on bend length, material, thickness, geometry and die opening — not tonnage alone.

WAD CNC press brake

WAD differs from a torsion-synchronised NC press through electro-hydraulic ram synchronisation. Multi-bend enclosures also depend on backgauge axes, crowning and tooling. Select these around the bend sequence and workpiece access rather than the highest force in the table.

Technical specifications

WAD CNC press brake
Model	Force, kN	Bending length, mm	Distance between columns, mm	Throat depth, mm	Ram stroke, mm	Daylight, mm	Machine weight, t
WAD 50T/1300	500	1300	1120	250	150	460	4
WAD 50T/2000	500	2000	1600	250	150	460	4.3
WAD 70T/1600	700	1600	1300	300	150	460	5.1
WAD 70T/2500	700	2500	2050	300	150	460	5.6
WAD 70T/3200	700	3200	2700	300	150	460	6.6
WAD 80T/2500	800	2500	2050	300	150	460	6
WAD 110T/2500	1100	2500	2050	400	200	480	7
WAD 110T/3200	1100	3200	2700	400	200	480	7.6
WAD 110T/4000	1100	4000	3100	400	200	480	8.8
WAD 110T/4100	1100	4100	3600	400	200	480	9
WAD 135T/3200	1350	3200	2700	400	200	480	9
WAD 135T/4000	1350	4000	3100	400	200	480	9.4
WAD 135T/4100	1350	4100	3600	400	200	480	9.6
WAD 170T/2500	1700	2500	2050	450	200	480	10.4
WAD 170T/3200	1700	3200	2700	450	200	480	11.3
WAD 170T/4000	1700	4000	3100	450	200	480	12.3
WAD 170T/4100	1700	4100	3600	450	200	480	12.5
WAD 220T/2500	2200	2500	2050	450	200	480	12
WAD 220T/3200	2200	3200	2600	450	200	480	12.8
WAD 220T/4000	2200	4000	3100	450	200	480	14
WAD 220T/5000	2200	5000	4000	450	200	480	19
WAD 250T/2500	2500	2500	2000	450	250	540	15.5
WAD 250T/3200	2500	3200	2600	450	250	540	16.1
WAD 250T/4000	2500	4000	3100	450	250	540	17.8
WAD 250T/5000	2500	5000	3800	450	250	540	23.3
WAD 250T/6000	2500	6000	4800	450	250	540	25
WAD 300T/3200	3000	3200	2600	500	250	570	18.8
WAD 300T/4000	3000	4000	3100	500	250	570	20.3
WAD 300T/5000	3000	5000	3800	500	250	570	27
WAD 300T/6000	3000	6000	4800	500	250	570	30.4
WAD 400T/3200	4000	3200	2400	500	300	610	22.8
WAD 400T/4000	4000	4000	3100	500	300	610	28.3
WAD 400T/5000	4000	5000	3800	500	300	610	31.2
WAD 400T/6000	4000	6000	4800	500	300	610	37.4
WAD 400T/8000	4000	—	6400	500	300	610	52.8
WAD 500T/4000	5000	4000	3100	500	300	610	35
WAD 500T/5000	5000	5000	3800	500	300	610	39.8
WAD 500T/6000	5000	6000	4800	500	300	610	45.8
WAD 600T/3200	6000	3200	2300	600	320	650	45
WAD 600T/4000	6000	4000	3100	600	320	650	45.8
WAD 600T/5000	6000	5000	3800	600	320	650	50.3
WAD 600T/6000	6000	6000	4800	600	320	650	56.8
WAD 600T/7000	6000	7000	5600	600	320	650	66.8
WAD 700T/6000	7000	6000	4900	600	320	700	66.8
WAD 800T/6000	8000	6000	4600	600	320	800	76.8
WAD 800T/7000	8000	7000	5600	600	320	800	—
WAD 800T/8000	8000	8000	6600	600	320	800	—
WAD 800T/10000	8000	10000	7800	600	320	800	—

Choosing a configuration

Required force is calculated from material, thickness, bend length and die opening. Higher tonnage alone does not mean a part is feasible: bend sequence, tool access, gauging and finished-part extraction must be checked. Supports and feeding method are agreed for long or heavy blanks. Before ordering, send the most demanding drawings, batch range and angle requirements so the press and tooling can be selected together.

Controller, backgauge axes, crowning, punches and dies, tool clamping and protective devices. The axis configuration and equipment are confirmed for the individual press.

Discuss configuration

Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.

Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.

Discuss configuration
