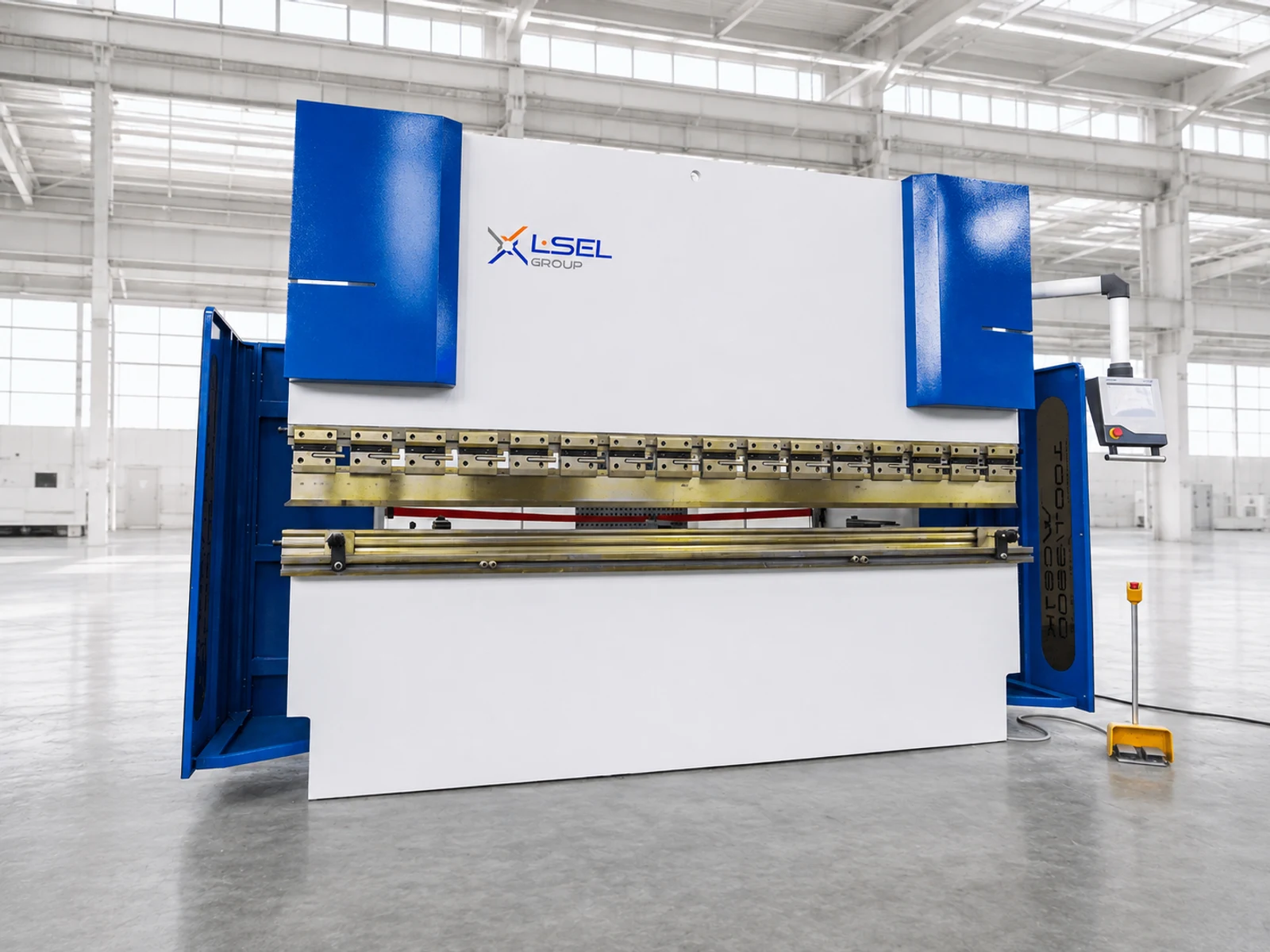

The image is for reference. Actual appearance and configuration may vary.
30t/1600, 30t/2000, 40t/2500, 63t/2500, 63t/3200, 80t/2500, 80t/3200, 100t/2500, 100t/3200, 100t/4000, WX67Y-100t/4000, 125t/3200, 125t/4000, WX67Y-125t/4000, 125t/5000, 125t/6000, 160t/2500, 160t/3200, 160t/4000, 160t/5000, 160t/6000, 200T/3200, 200T/4000, 200T/5000, 200T/6000, 250T/3200, 250T/4000, 250T/5000, 250T/6000, 300T/3200, 300T/4000, 300T/5000, 300T/6000, 400T/4000, 400T/5000, 400T/6000, 500T/4000, 500T/5000, 500T/6000, 500T/7000, 600T/4000, 600T/5000, 600T/6000, 600T/7000
The WC67K/WC67E torsion-synchronised family for standard bending operations. Force, length and controls are matched to the parts your production makes every day.

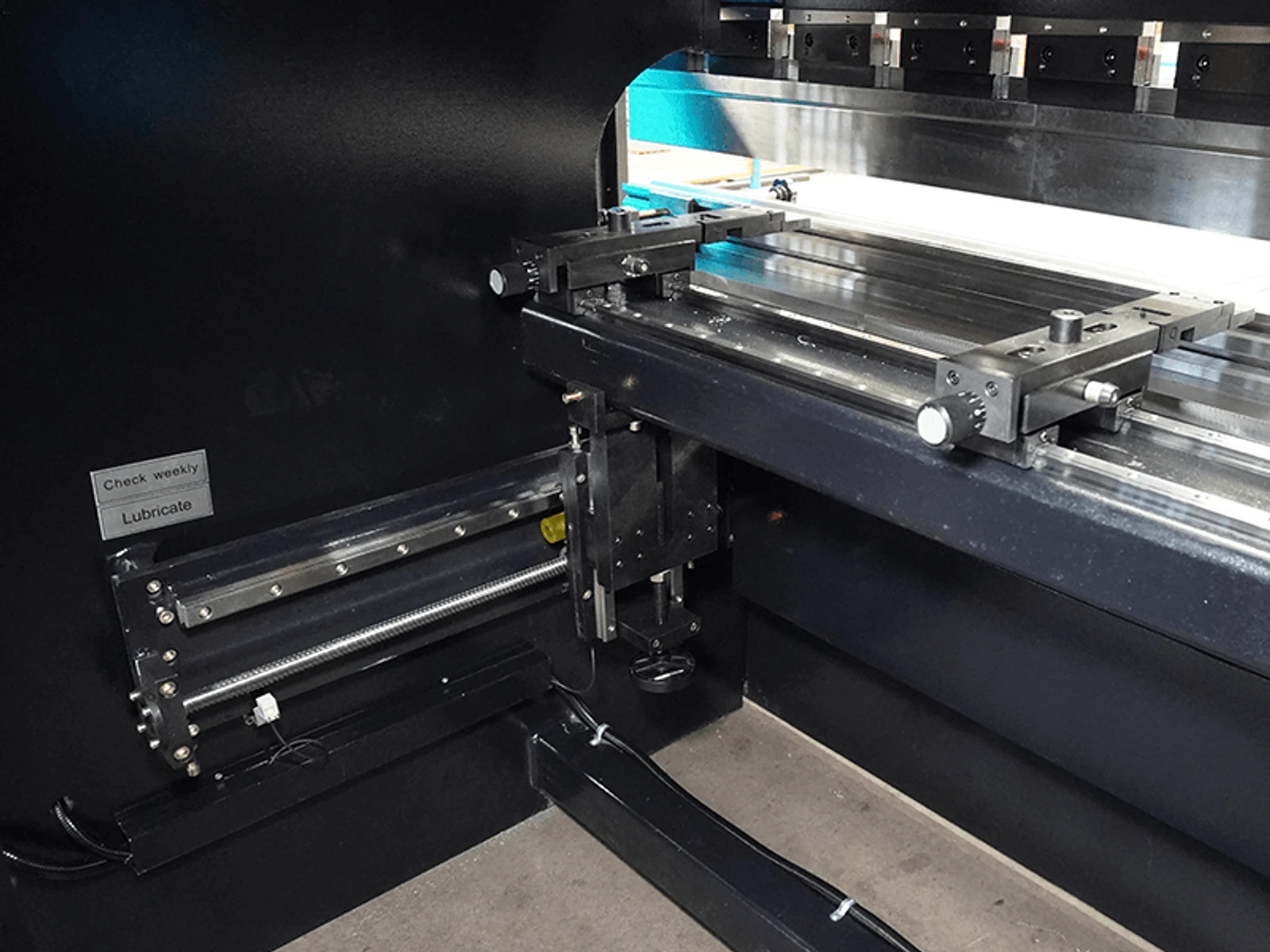

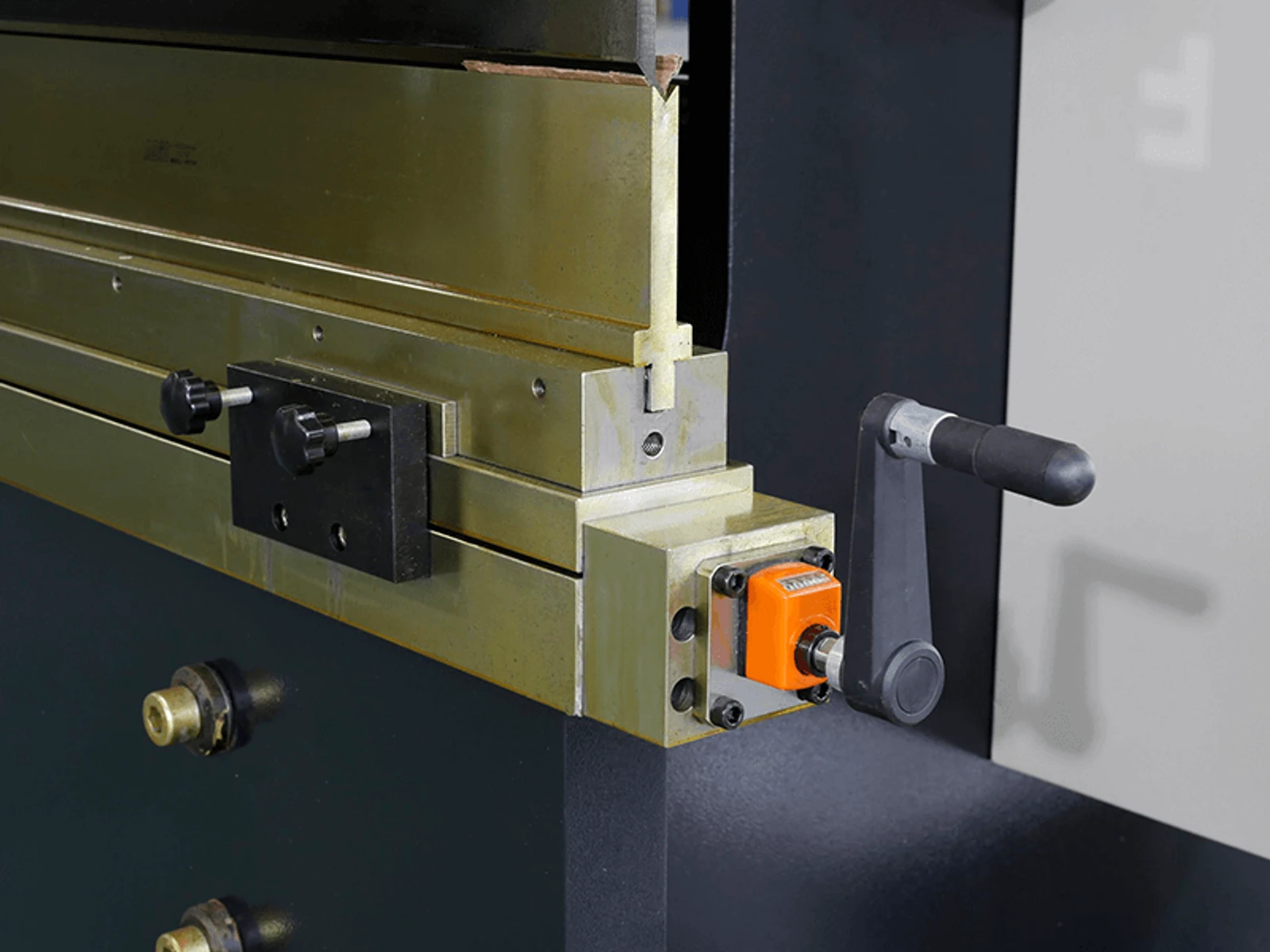

A torsion mechanism synchronises ram movement. The controller manages the agreed axes while the backgauge establishes dimensions between operations. Angle programming and R-axis functions depend on the controller and equipment package; they are not standard across every press. Crowning and tooling are selected separately.
Profiles, brackets, enclosure and construction components from sheet metal. An option for defined product ranges with repeatable bend sequences. For complex boxes and frequent changeovers, compare NC with an electrohydraulic CNC press by the actual cycle and required axes.
WC67K/WC67E is a torsion-synchronised alternative to electro-hydraulic WAD machines. It suits repeat bends with a straightforward setup sequence. Complex boxes require a review of the actual controller and backgauge: the NC label does not specify axis count or angle-programming capabilities.
| Model | Force, kN | Bending length, mm | Oil tank, L | Approach speed, mm/s | Ram working speed, mm/s | Return speed, mm/s | Distance between columns, mm | Throat depth, mm | Ram stroke, mm | Daylight, mm | Main motor, kW | Machine weight, t | Dimensions L × W × H, mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30t/1600 | 300 | 1600 | 80 | 120 | 17 | 160 | 1300 | 200 | 80 | 320 | 5.5 | 2.3 | 1650*1200*1700 |
| 30t/2000 | 300 | 2000 | 100 | 140 | 17 | 160 | 1600 | 200 | 80 | 320 | 5.5 | 2.5 | 2000*1200*1700 |
| 40t/2500 | 400 | 2500 | 170 | 110 | 15 | 90 | 2030 | 250 | 100 | 340 | 5.5 | 3.5 | 2500*1200*1900 |
| 63t/2500 | 630 | 2500 | 170 | 100 | 10 | 70 | 2050 | 250 | 120 | 340 | 5.5 | 4.5 | 2500*1350*2100 |
| 63t/3200 | 630 | 3200 | 170 | 120 | 10 | 70 | 2510 | 250 | 120 | 340 | 5.5 | 5 | 3200*1350*2100 |
| 80t/2500 | 800 | 2500 | 170 | 110 | 10 | 80 | 2050 | 250 | 120 | 350 | 5.5 | 6 | 2500*1400*2150 |
| 80t/3200 | 800 | 3200 | 170 | 130 | 10 | 80 | 2510 | 250 | 120 | 350 | 5.5 | 6.2 | 3200*1400*2150 |
| 100t/2500 | 1000 | 2500 | 260 | 90 | 7.5 | 70 | 2050 | 320 | 160 | 420 | 7.5 | 6.5 | 2500*1500*2200 |
| 100t/3200 | 1000 | 3200 | 260 | 100 | 7.5 | 70 | 2510 | 320 | 160 | 420 | 7.5 | 7 | 3200*1500*2300 |
| 100t/4000 | 1000 | 4000 | 260 | 120 | 7.5 | 70 | 3100 | 320 | 160 | 420 | 7.5 | 8.5 | 4000*1750*2590 |
| WX67Y-100t/4000 | 1000 | 4000 | 260 | 120 | 7.5 | 70 | 3100 | 420 | 160 | 440 | 7.5 | 9 | 4000*1500*2400 |
| 125t/3200 | 1250 | 3200 | 260 | 95 | 7 | 65 | 2510 | 320 | 160 | 420 | 7.5 | 7.5 | 3200*1600*2350 |
| 125t/4000 | 1250 | 4000 | 260 | 110 | 7 | 65 | 3100 | 320 | 160 | 420 | 7.5 | 9.5 | 4000*1600*2450 |
| WX67Y-125t/4000 | 1250 | 4000 | 260 | 110 | 7 | 65 | 3100 | 420 | 160 | 440 | 7.5 | 10 | 4000*1750*2590 |
| 125t/5000 | 1250 | 5000 | 260 | 120 | 7 | 65 | 3800 | 320 | 160 | 420 | 7.5 | 9 | 5000*1600*2450 |
| 125t/6000 | 1250 | 6000 | 260 | 130 | 7 | 65 | 4600 | 320 | 160 | 420 | 7.5 | 11 | 6000*1600*2450 |
| 160t/2500 | 1600 | 2500 | 260 | 100 | 10 | 100 | 2050 | 350 | 200 | 470 | 11 | 12 | 2500*1650*2700 |
| 160t/3200 | 1600 | 3200 | 260 | 110 | 10 | 100 | 2510 | 350 | 200 | 470 | 11 | 14.5 | 3200*1650*2800 |
| 160t/4000 | 1600 | 4000 | 260 | 120 | 10 | 100 | 3100 | 350 | 200 | 470 | 11 | 19.5 | 4000*1650*2800 |
| 160t/5000 | 1600 | 5000 | 260 | 130 | 10 | 100 | 3800 | 350 | 200 | 470 | 11 | 13.5 | 5000*1750*3100 |
| 160t/6000 | 1600 | 6000 | 260 | 140 | 10 | 100 | 4600 | 350 | 200 | 470 | 11 | 11.5 | 6000*1750*3300 |
| 200T/3200 | 2000 | 3200 | 435 | 110 | 10 | 100 | 2510 | 350 | 200 | 470 | 15 | 15 | 3200*1650*2800 |
| 200T/4000 | 2000 | 4000 | 435 | 120 | 10 | 100 | 3100 | 350 | 200 | 470 | 15 | 12.5 | 4000*1650*2800 |
| 200T/5000 | 2000 | 5000 | 435 | 120 | 7 | 80 | 3800 | 350 | 250 | 540 | 15 | 19 | 5000*1950*3100 |
| 200T/6000 | 2000 | 6000 | 435 | 120 | 7 | 80 | 4600 | 350 | 250 | 540 | 15 | 21 | 6000*1950*3100 |
| 250T/3200 | 2500 | 3200 | 435 | 90 | 9 | 100 | 2600 | 400 | 250 | 580 | 18.5 | 17 | 3300*2100*3150 |
| 250T/4000 | 2500 | 4000 | 435 | 100 | 9 | 100 | 3300 | 400 | 250 | 580 | 18.5 | 20 | 4000*2100*3150 |
| 250T/5000 | 2500 | 5000 | 435 | 110 | 8 | 100 | 3800 | 400 | 250 | 580 | 18.5 | 23 | 5000*2100*3200 |
| 250T/6000 | 2500 | 6000 | 540 | 120 | 8 | 100 | 4600 | 400 | 250 | 580 | 18.5 | 25.5 | 6000*2100*3200 |
| 300T/3200 | 3000 | 3200 | 540 | 90 | 8 | 75 | 2600 | 400 | 250 | 580 | 18.5 | 21 | 3200*2200*3200 |
| 300T/4000 | 3000 | 4000 | 540 | 100 | 8 | 75 | 3100 | 400 | 250 | 580 | 18.5 | 23 | 4000*2200*3200 |
| 300T/5000 | 3000 | 5000 | 550 | 110 | 8 | 75 | 3800 | 400 | 250 | 580 | 18.5 | 25 | 5000*2200*3200 |
| 300T/6000 | 3000 | 6000 | 560 | 130 | 8 | 75 | 4600 | 400 | 250 | 580 | 18.5 | 27.5 | 6000*2200*3200 |
| 400T/4000 | 4000 | 4000 | 540 | 70 | 7 | 60 | 3100 | 400 | 250 | 580 | 22 | 26 | 4000*2400*3200 |
| 400T/5000 | 4000 | 5000 | 550 | 90 | 7 | 60 | 3800 | 400 | 250 | 580 | 22 | 32 | 5000*2400*3200 |
| 400T/6000 | 4000 | 6000 | 550 | 100 | 7 | 60 | 4400 | 400 | 250 | 580 | 22 | 35 | 6000*2400*3200 |
| 500T/4000 | 5000 | 4000 | 620 | 70 | 6 | 55 | 3100 | 500 | 320 | 620 | 30 | 33 | 4000*2650*3200 |
| 500T/5000 | 5000 | 5000 | 620 | 90 | 6 | 55 | 3800 | 500 | 320 | 620 | 30 | 37.5 | 5000*2650*3200 |
| 500T/6000 | 5000 | 6000 | 620 | 120 | 6 | 55 | 4410 | 500 | 320 | 620 | 30 | 43.5 | 6000*2700*3200 |
| 500T/7000 | 5000 | 7000 | 620 | 130 | 6 | 55 | 5400 | 500 | 320 | 620 | 30 | 55 | 7000*2700*3200 |
| 600T/4000 | 6000 | 4000 | 650 | 80 | 6 | 65 | 3100 | 500 | 320 | 620 | 37 | 45 | 4000*2700*3200 |
| 600T/5000 | 6000 | 5000 | 650 | 90 | 6 | 65 | 3800 | 500 | 320 | 620 | 37 | 48 | 5000*2700*3250 |
| 600T/6000 | 6000 | 6000 | 650 | 110 | 6 | 65 | 4600 | 500 | 320 | 620 | 37 | 55 | 6000*2700*3300 |
| 600T/7000 | 6000 | 7000 | 650 | 120 | 6 | 65 | 5400 | 500 | 320 | 620 | 37 | 62 | 7000*2900*3500 |
The table contains 44 factory-listed variants, including separately designated WX67Y entries. Similar tonnage does not establish identical geometry: check throat, stroke, daylight and column spacing. Force is calculated for the material, thickness, bend length and die opening.
Controller, axes, gauges, crowning, clamps, punches and dies, supports and protection. Send demanding part drawings and typical batch sizes. We check tool access, bend sequence, part extraction and space for safe sheet feeding.
Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
