Suitable applications
Blank-preparation shops, steel structures, panels and sheet strips. Straight-line shearing suits preparation before bending or welding when a shaped contour is not required.
guillotine shears Q11K

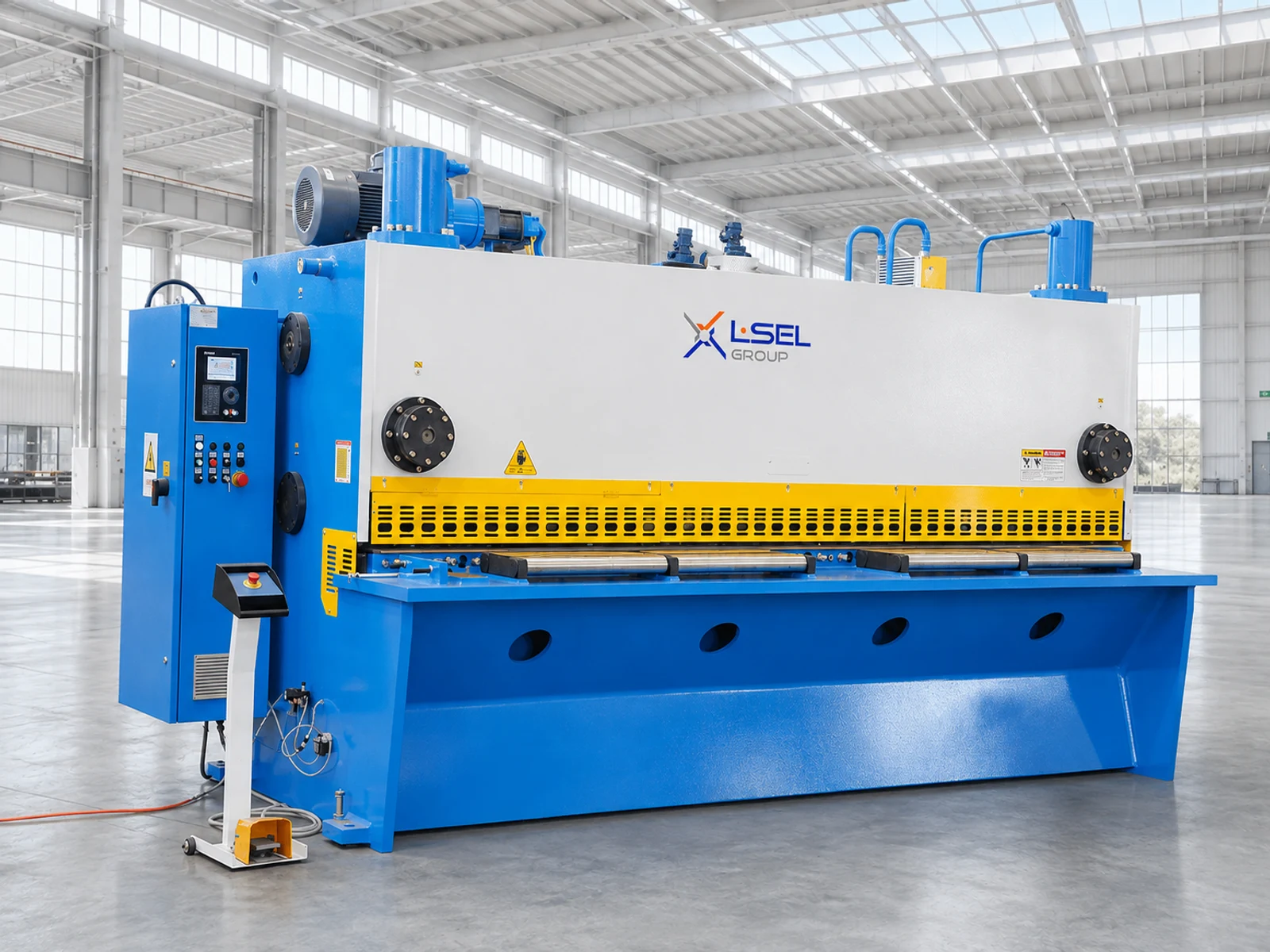

The image is for reference. Actual appearance and configuration may vary.
- Tabulated shearing thickness, mm
- 6–40
- Shearing length, mm
- 2500–8000
- Control
- NC / CNC
Q11K 6/2500, Q11K 6/3200, Q11K 6/4000, Q11K 6/5000, Q11K 6/6000, Q11K 8/2500, Q11K 8/3200, Q11K 8/4000, Q11K 8/5000, Q11K 8/6000, Q11K 13/2500, Q11K 13/3200, Q11K 13/4000, Q11K 13/5000, Q11K 13/6000, Q11K 16/2500, Q11K 16/3200, Q11K 16/4000, Q11K 16/6000, Q11K 16/8000, Q11K 20/2500, Q11K 20/3200, Q11K 20/4000, Q11K 20/6000, Q11K 25/2500, Q11K 25/3200, Q11K 25/4000, Q11K 30/2500, Q11K 30/3200, Q11K 30/4000, Q11K 40/2500

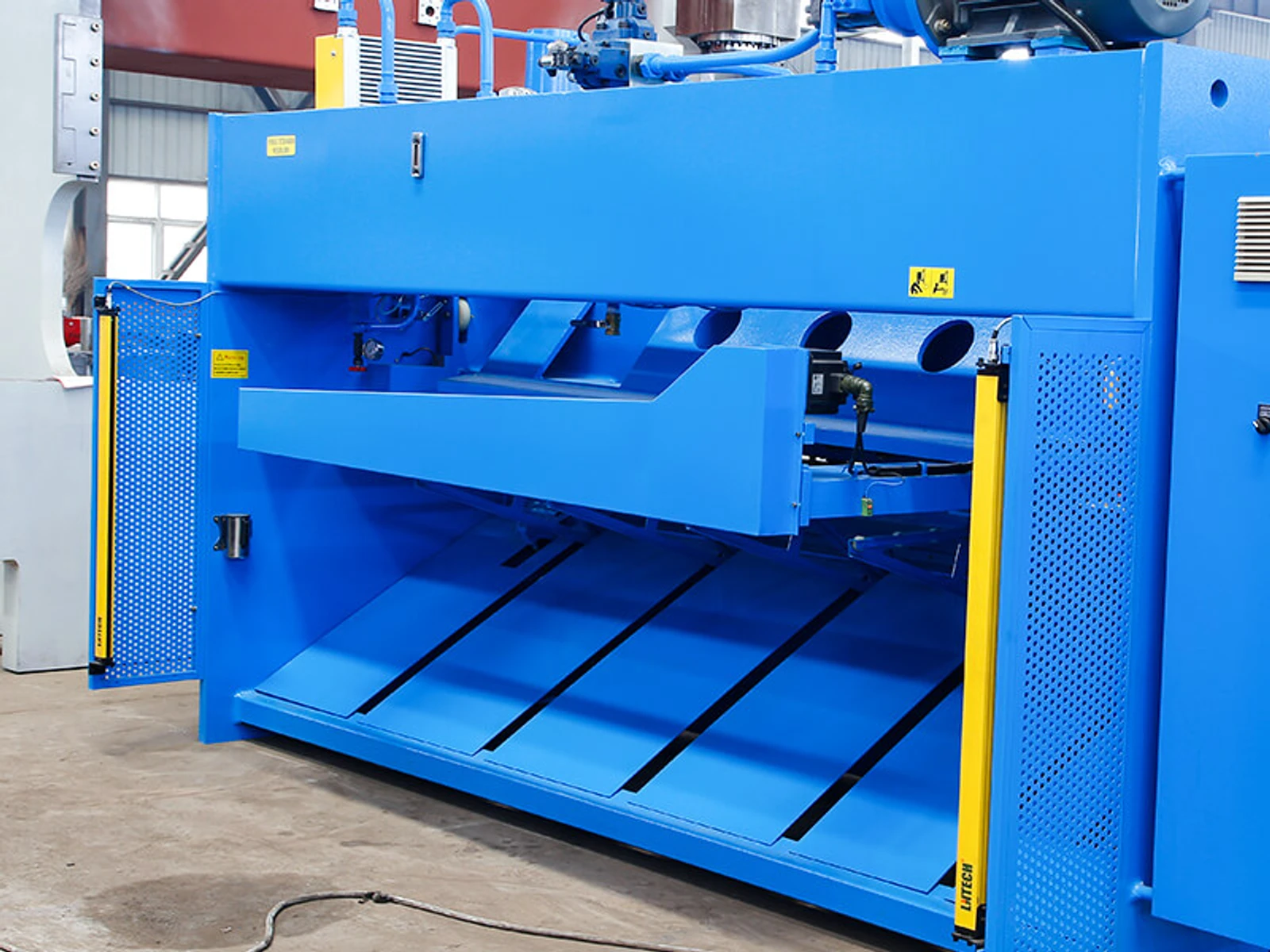

A straight-moving blade beam for sheet blanking. Versions differ in thickness, cutting length, backgauge range and drive.
A welded box frame carries the cutting load while the upper beam moves on guides relative to the lower blade. Rake angle and clearance are selected for material and thickness. Hold-downs, backgauge and controls form part of the agreed configuration.
Purpose and distinguishing features
Q11K guillotine shears
Q11K uses a straight-moving blade beam. Long-sheet work depends on cutting angle, clearance and hold-down along the width. Compare versions for the actual metal grade: allowable thickness differs by material and does not alone establish edge quality.
Technical specifications
| Model | Tabulated shearing thickness, mm | Shearing length, mm | Oil tank, L | Strokes per minute | Backgauge range, mm | Shearing angle | Main motor, kW | Machine weight, t | Dimensions L × W × H, mm |
|---|---|---|---|---|---|---|---|---|---|
| Q11K 6/2500 | 6 | 2500 | 300 | 16-25 | 20-800 | 30′-1°30′ | 7.5 | 6 | 3200 × 1950 × 2050 |
| Q11K 6/3200 | 6 | 3200 | 300 | 14-20 | 20-800 | 30′-1°30′ | 7.5 | 6.8 | 3900 × 1950 × 2075 |
| Q11K 6/4000 | 6 | 4000 | 340 | 12-17 | 20-800 | 30′-1°30′ | 7.5 | 9.5 | 4640 × 2000 × 2100 |
| Q11K 6/5000 | 6 | 5000 | 340 | 8-14 | 20-800 | 30′-1°30′ | 15 | 14.5 | 5780 × 2100 × 2380 |
| Q11K 6/6000 | 6 | 6000 | 340 | 7-12 | 20-800 | 30′-1°30′ | 15 | 19.6 | 6750 × 2200 × 2500 |
| Q11K 8/2500 | 8 | 2500 | 300 | 13-20 | 20-800 | 30′-1°30′ | 11 | 6.5 | 3150 × 1970 × 2055 |
| Q11K 8/3200 | 8 | 3200 | 300 | 11-18 | 20-800 | 30′-1°30′ | 11 | 7 | 3850 × 2050 × 2100 |
| Q11K 8/4000 | 8 | 4000 | 340 | 9-16 | 20-800 | 30′-1°30′ | 15 | 10.8 | 4650 × 2100 × 2400 |
| Q11K 8/5000 | 8 | 5000 | 350 | 8-15 | 20-800 | 30′-1°30′ | 15 | 16 | 5700 × 1950 × 2600 |
| Q11K 8/6000 | 8 | 6000 | 580 | 7-14 | 20-800 | 30′-1°30′ | 18.5 | 19.8 | 6750 × 2250 × 2615 |
| Q11K 13/2500 | 13 | 2500 | 405 | 10-20 | 20-800 | 30′-2° | 22 | 10 | 3250 × 1950 × 2110 |
| Q11K 13/3200 | 13 | 3200 | 405 | 9-18 | 20-800 | 30′-2° | 22 | 10.2 | 3900 × 2070 × 2315 |
| Q11K 13/4000 | 13 | 4000 | 405 | 8-16 | 20-800 | 30′-2° | 22 | 12.5 | 4800 × 2150 × 2460 |
| Q11K 13/5000 | 13 | 5000 | 505 | 7-14 | 20-1000 | 30′-2° | 22 | 22.5 | 5800 × 2270 × 2800 |
| Q11K 13/6000 | 13 | 6000 | 1020 | 6-12 | 20-1000 | 30′-2° | 30 | 27 | 6950 × 2450 × 3050 |
| Q11K 16/2500 | 16 | 2500 | 475 | 9-18 | 20-800 | 30′-2°30′ | 22 | 11 | 3280 × 2020 × 2270 |
| Q11K 16/3200 | 16 | 3200 | 475 | 8-17 | 20-800 | 30′-2°30′ | 22 | 12 | 3950 × 2150 × 2450 |
| Q11K 16/4000 | 16 | 4000 | 595 | 7-15 | 20-800 | 30′-2°30′ | 22 | 15.5 | 4800 × 2130 × 2550 |
| Q11K 16/6000 | 16 | 6000 | 1020 | 6-11 | 20-1000 | 30′-2°30′ | 37 | 36 | 7000 × 2500 × 3000 |
| Q11K 16/8000 | 16 | 8000 | 2060 | 4-8 | 20-1000 | 30′-2°30′ | 45 | 63 | 9050 × 3180 × 3500 |
| Q11K 20/2500 | 20 | 2500 | 510 | 7-16 | 20-800 | 30′-3° | 30 | 14 | 3200 × 2220 × 2520 |
| Q11K 20/3200 | 20 | 3200 | 510 | 6-15 | 20-800 | 30′-3° | 30 | 16.5 | 3950 × 2150 × 2600 |
| Q11K 20/4000 | 20 | 4000 | 640 | 6-14 | 20-800 | 30′-3° | 37 | 19 | 4750 × 2400 × 2900 |
| Q11K 20/6000 | 20 | 6000 | 1500 | 5-11 | 20-1000 | 30′-3° | 30 × 2 | 43 | 7000 × 2850 × 3350 |
| Q11K 25/2500 | 25 | 2500 | 750 | 5-14 | 20-800 | 30′-3°30′ | 37 | 15 | 3270 × 2000 × 2650 |
| Q11K 25/3200 | 25 | 3200 | 820 | 5-10 | 20-800 | 30′-3°30′ | 37 | 19 | 3970 × 2200 × 2670 |
| Q11K 25/4000 | 25 | 4000 | 1200 | 5-8 | 20-800 | 30′-3°30′ | 45 | 27 | 4900 × 2800 × 3190 |
| Q11K 30/2500 | 30 | 2500 | 780 | 5-12 | 20-1000 | 30′-3° | 45 | 23 | 3450 × 2500 × 2900 |
| Q11K 30/3200 | 30 | 3200 | 1000 | 4-10 | 20-1000 | 30′-3°30′ | 55 | 28 | 4150 × 2700 × 2850 |
| Q11K 30/4000 | 30 | 4000 | 1400 | 3-7 | 20-1000 | 30′-3°30′ | 55 | 36 | 5200 × 2600 × 3350 |
| Q11K 40/2500 | 40 | 2500 | 1370 | 4-8 | 20-1000 | 30′-4° | 55 | 38 | 4000 × 2950 × 3150 |
Choosing a configuration
Tabulated formats do not establish identical capacity across all metal grades. We check strength, cut length, strip width and acceptable deformation. Stroke frequency depends on settings; production-cycle assessment also includes sheet feeding and removal.
Controller, automated gap and angle adjustment, backgauge, front supports, sheet support and scrap handling. Exact-model dimensions and weight inform delivery and installation planning; access aisles and operating space are additional.
Discuss configuration
Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
