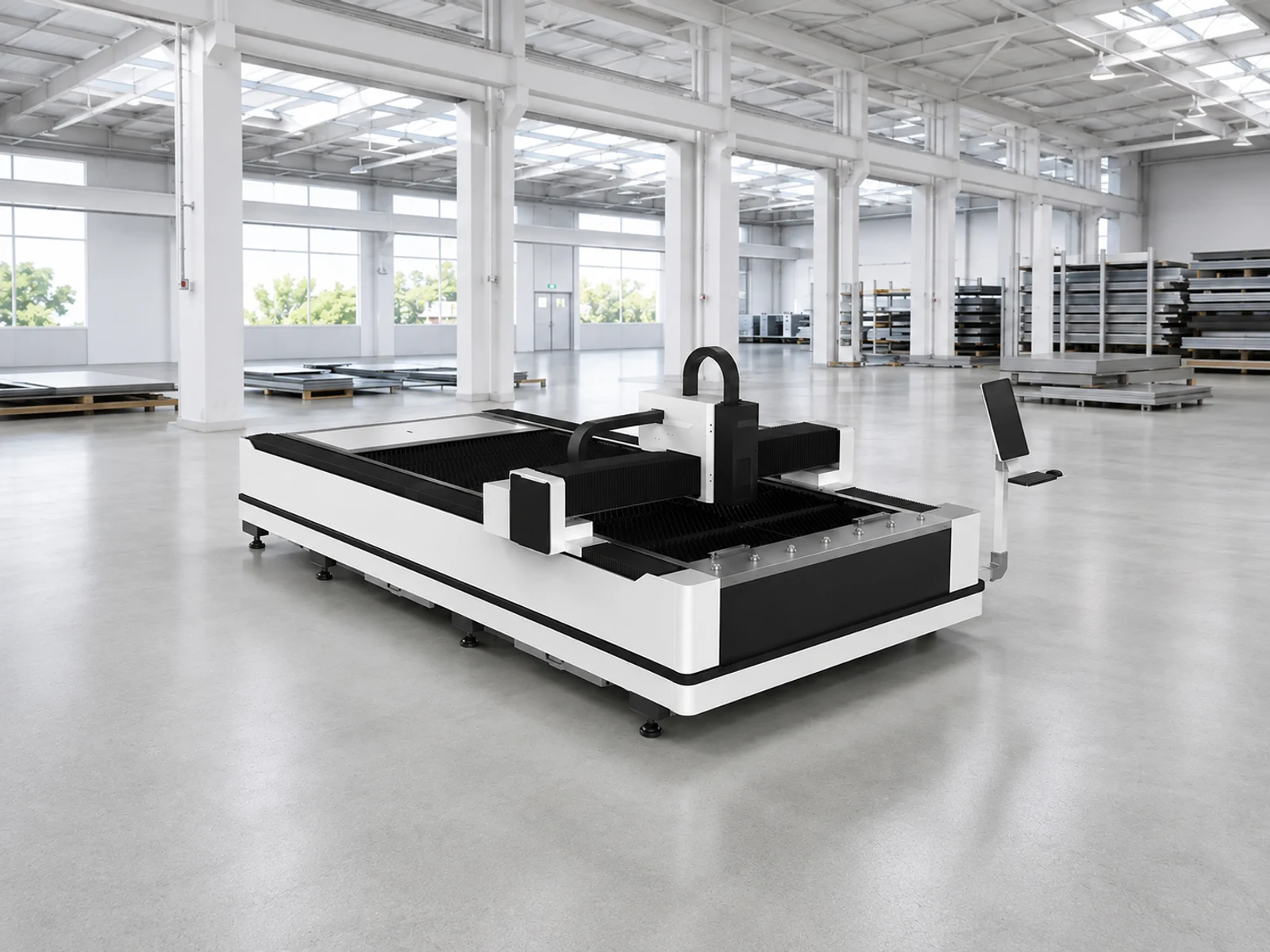

open-bed sheet laser LF3015LN, LF4020LN, LF6025LN

The image is for reference. Actual appearance and configuration may vary.

Source power, kW: 1–12
Formats, mm: 3050 × 1520 — 6100 × 2550
Layout: Open bed

An open-access working area in several standard formats. A sheet cutting series configured for your application.

LN is a sheet series with an open working area. Direct table access supports material loading and removal of nested parts. This allows the process to follow familiar cell logistics, but loading and unloading occupy the same table used for cutting. Cell design must provide protection from laser radiation, local fume extraction, cooling and space for safe sheet handling.

Discuss configuration

Purpose and distinguishing features

Suitable applications

Parts in carbon steel, stainless steel and other metals within the agreed process envelope. We assess sheet size, frequency of material changes and loading method.

LF3015LN, LF4020LN, LF6025LN open-bed sheet laser

LN combines open access with several sheet formats. When comparing it with CN or MK-S, check the actual working area, required power and sheet access in your workshop. A similar layout does not establish identical drives, accuracy or supplied equipment.

Technical specifications

LF3015LN, LF4020LN, LF6025LN open-bed sheet laser
Model	Working area, mm	Source power, kW
LF3015LN	3050 × 1520	1 / 2 / 3 / 4 / 6 / 12
LF4020LN	4100 × 2050	1 / 2 / 3 / 4 / 6 / 12
LF6025LN	6100 × 2550	1 / 2 / 3 / 4 / 6 / 12

LF3015LN, LF4020LN, LF6025LN open-bed sheet laser
Positioning accuracy, mm	±0.05
Positioning repeatability, mm	±0.03

Choosing a configuration

Compare the three verified formats by purchased sheet size, largest part, remnant use and crane access. Power is selected for the actual material and workload, not only the maximum thickness in an isolated example. Positioning and repeatability figures describe the machine; finished-part tolerances are checked through cutting trials. Confirm the specific LN configuration and appearance when ordering: an open-machine illustration does not establish its generation.

Source, head, cooling, gases, fume extraction and cutting-zone protection. Thickness capabilities and throughput are checked for the actual material and power.

Discuss configuration

Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
