Suitable applications
Large profile assemblies, structural tube and long parts with holes and cutouts. Selection depends on mass, stiffness, section shape and the method of receiving the blank.
horizontal three-chuck tube laser MK-T3W

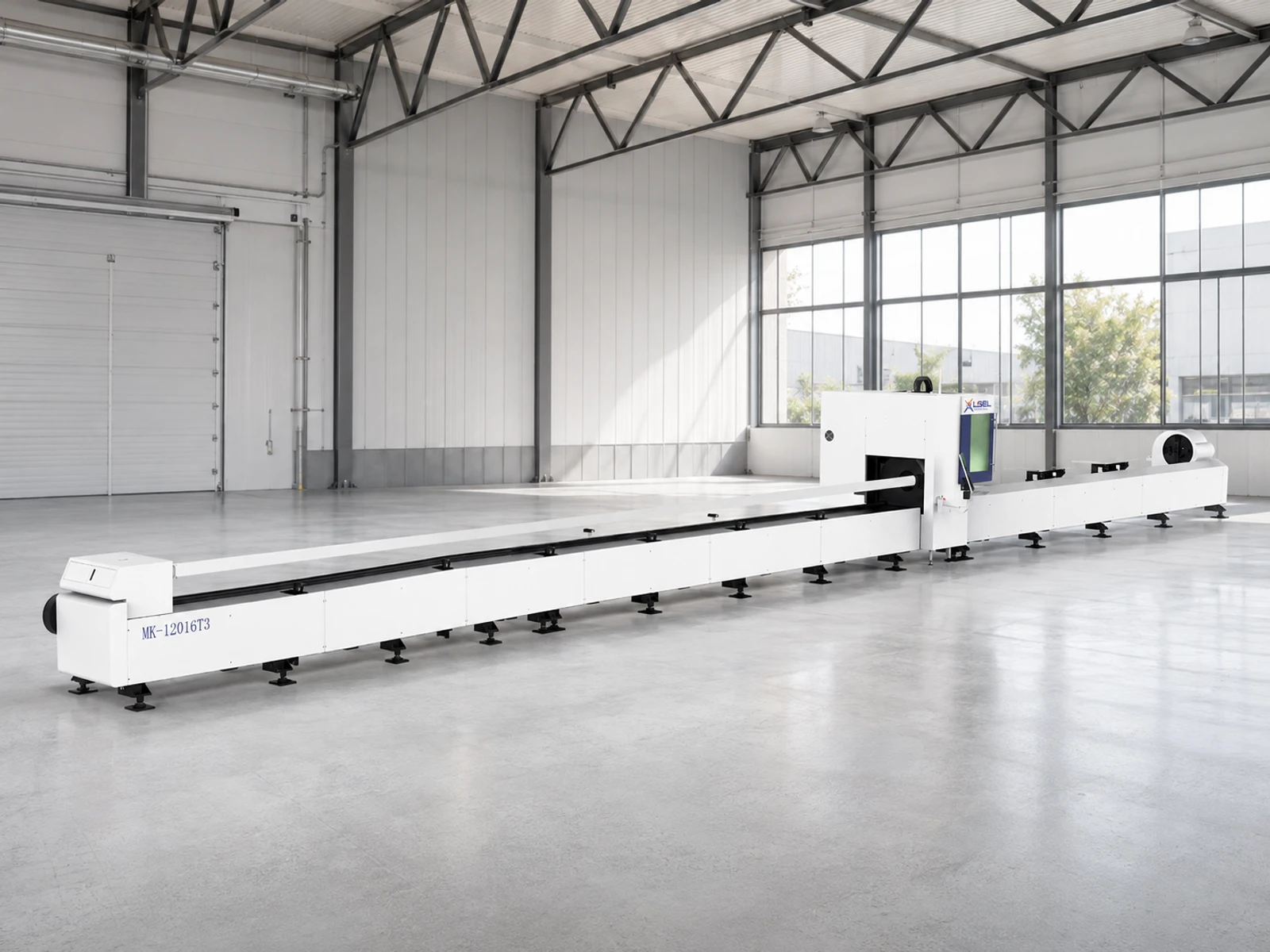

The image is for reference. Actual appearance and configuration may vary.
- Source power, kW
- 1.5–20
- Round tube, mm
- 20–520
- Chuck count
- 3
MK-6024T3W, MK-6028T3W, MK-6036T3W, MK-6052T3W
Three chucks and long-tube support for profile production. Four tabulated variants cover sections up to 240, 280, 360 or 520 mm.
A horizontal bed, servo-controlled supports and three chucks hold the blank through successive stages. The additional grip helps organize tube transfer and machining of long parts.
Purpose and distinguishing features
MK-T3W horizontal three-chuck tube laser
Horizontal MK-T3W adds a third chuck and controlled support for long tubes. Its four variants differ in section capacity and dynamics: the largest chuck is not the fastest. Evaluate stock length and weight, finished parts and transfer between the chucks.
Technical specifications
| Model | Source power, kW | Round tube, mm | Square tube, mm | Maximum travel speed, m/min | Maximum acceleration, g |
|---|---|---|---|---|---|
| MK-6024T3W | 1.5–20 | 20–240 | 20–240 | 100 | 1 |
| MK-6028T3W | 1.5–20 | 20–280 | 20–280 | 100 | 1 |
| MK-6036T3W | 1.5–20 | 20–360 | 20–360 | 70 | 0.5 |
| MK-6052T3W | 1.5–20 | 20–520 | 20–520 | 60 | 0.5 |
| Chuck count | 3 |
|---|
Choosing a configuration
The series power range is 1.5–20 kW. Travel speed and acceleration differ by model. Extended systems and automatic feeding are specified separately; the long configuration pictured does not define every variant.
Send your tube list, drawings and remnant requirements. We check chucks, support, regripping sequence and actual cycle; a minimum remnant is not guaranteed for every geometry.
Discuss configuration
Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
Discuss configurationAlso in the catalogue
GKS-6024T2, GKS-6036T2
Two-chuck tube laser
Round and square tube cutting with two-chuck workholding. Two configurations cover different stock sizes and workpiece weights.
