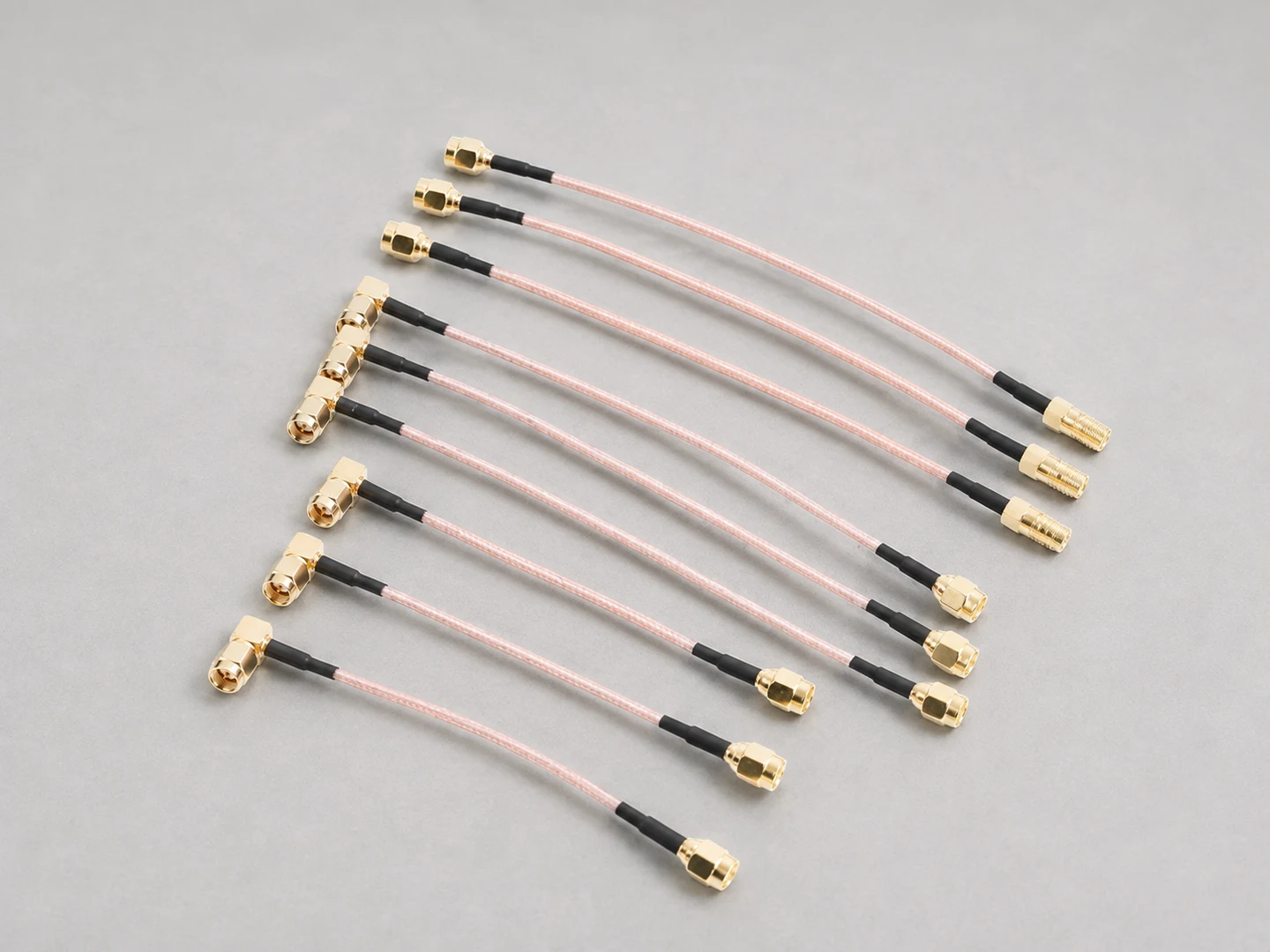

Example product in this category. The studio background is retouched; the version and supplied items are confirmed on request.
Cables and components for capacitive nozzle-to-sheet distance sensing. We identify the required assembly by connectors and head revision.
For a cable, send photos of both ends, its length and the head model. For an electronic module, provide its own part number and the error description.
The sensor line carries the signal from the lower head assembly to the height-control system. Unstable height can involve the ceramic, nozzle, contacts or settings, not just the cable. Identifying the faulty component first avoids replacing working assemblies at random.
Height-sensing cables depend on head revision: BM111 connector types changed over time. Cable length alone does not identify the part. Photographs of both ends and the head's date or serial identification distinguish otherwise similar versions.
| Cable code | Connectors / length | Application example |
|---|---|---|
| 211TTW9012 | SMB–SMA · 150 mm | BM111 before March 2022 |
| 211TTW9002 | SMA–SMA · 150 mm | BM111 from March 2022 |
| 211TTW9004 | SMA–SMA · 100 mm | BS04K |
Photograph both connectors closely. SMA and SMB have different connections even when the cables look similar.
Confirm the manufacture date or head revision: BM111 heads use different sensor cables.
Include the error code and when it occurs. After repair, check and calibrate according to the system instructions.
Send the machine and head model, photographs of the markings and part, its dimensions and the quantity required. If replacing a faulty assembly, briefly describe the symptoms. Price and lead time on request. We check compatibility and confirm the required version before ordering.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
