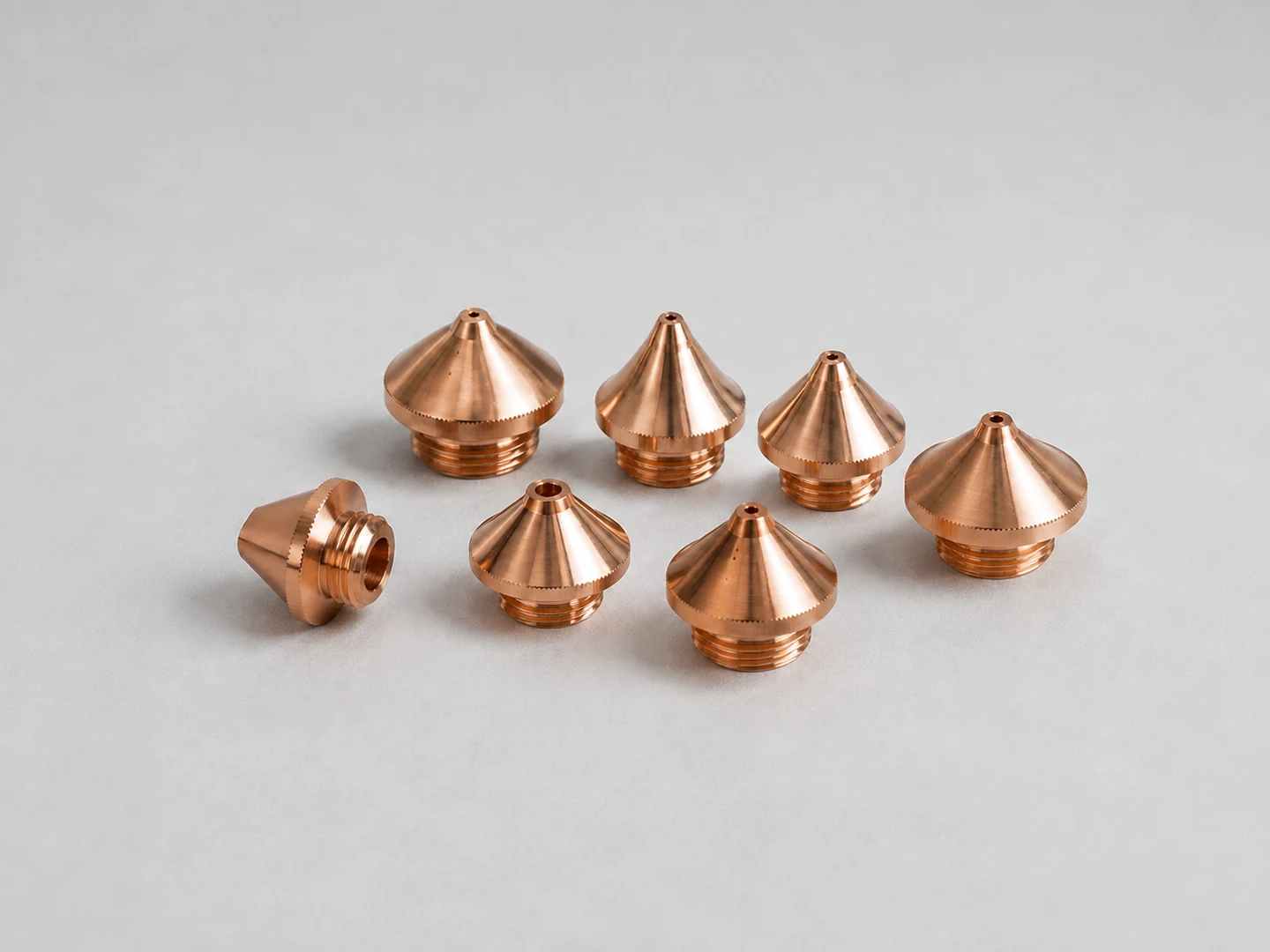

Example product in this category. The studio background is retouched; the version and supplied items are confirmed on request.
Single-layer, double-layer and 3D nozzles for sheet and tube cutting. We match the mounting interface and aperture to your head and process.
Send the head model and photos of the nozzle aperture and thread. A packaging part number helps identify the required version faster.
The nozzle directs assist gas into the cutting zone. Its geometry, aperture condition and centring affect process stability. A worn edge, deposits or impact marks are reasons to inspect the nozzle and ceramic holder before changing machine settings.
Single, double and 3D nozzles differ in more than aperture. Match the gas passage, mounting and working distance to the actual head. For repeat replenishment, record a verified part number and process rather than ordering by thread diameter alone.
| Mounting example | Construction | Example apertures, mm |
|---|---|---|
| D32 × H15 · M14 | Single / double | 1.5 / 2.0 / 3.0 |
| D28 × H15 · M11 | Single / double HS | 1.5 / 2.0 / 3.0 |
| D15 × H19 · M8 | 3D nozzle | 1.5 / 2.0 / 3.0 |
Check the outside diameter, height, thread and single- or double-layer construction.
Specify the material, thickness, gas and current nozzle aperture. Aperture selection is not determined by laser power alone.
If a replacement does not restore cut quality, check centring and optical condition according to the head manual.
Send the machine and head model, photographs of the markings and part, its dimensions and the quantity required. If replacing a faulty assembly, briefly describe the symptoms. Price and lead time on request. We check compatibility and confirm the required version before ordering.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
Select a part and request a price: Nozzles
