Suitable applications
Furniture, fitness equipment, railings and tube structures. A useful option where part lengths vary and final tube sections need to be used efficiently while maintaining stable gripping.

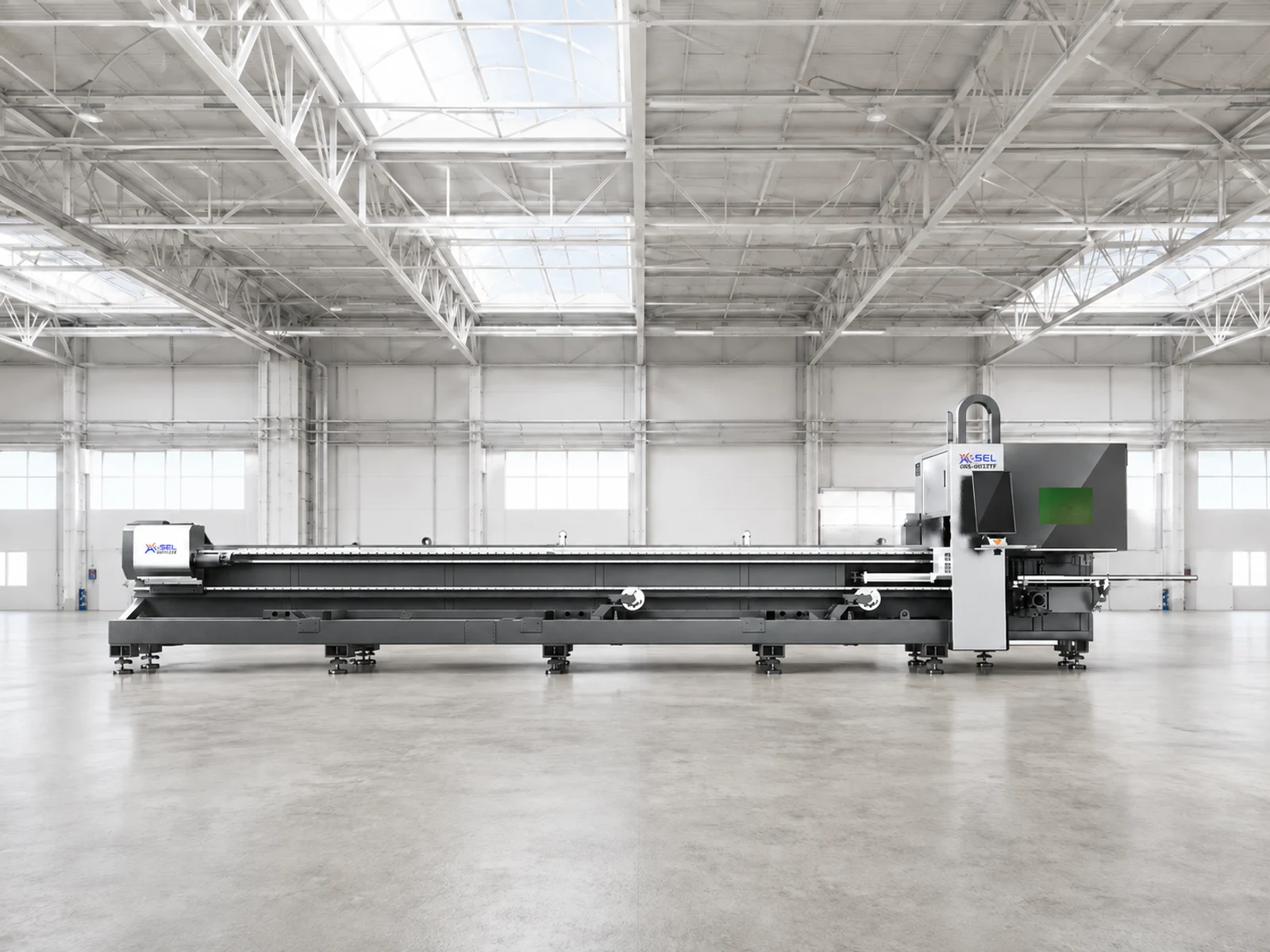

side-mounted tube laser TF
The image is for reference. Actual appearance and configuration may vary.
- Source power, kW
- 1.5 / 3 / 6
- Round tube, mm
- 10–160
- Effective cutting length, mm
- 6500
6012TF, 6016TF
Two configurations for tubes up to 120 or 160 mm. Side-mounted working components and front-chuck offset provide easier workpiece access.
The side-mounted chuck layout lowers the working zone. The front chuck offsets to cut the final section with dual-chuck holding. Follow-up supports and the unloading flap are selected for part length and weight.
Purpose and distinguishing features
TF side-mounted tube laser
TF combines a side-mounted arrangement with front-chuck movement near the tube remnant. This improves workpiece access, but the two chuck sizes have different limits. Thin profiles require assessment of support contact and clamping deformation, not rated diameter alone.
Technical specifications
| Model | Source power, kW | Round tube, mm | Square tube, mm | Effective cutting length, mm | Workpiece mass, kg | Maximum chuck rotation, rpm | Pneumatic chuck size designation |
|---|---|---|---|---|---|---|---|
| 6012TF | 1.5 / 3 / 6 | 10–120 | 10–120 | 6500 | 80 | — | 120 |
| 6016TF | 1.5 / 3 / 6 | 10–160 | 10–160 | 6500 | 80 | — | 160 |
Choosing a configuration
6012TF and 6016TF have different section limits, the same 6500 mm cutting length and an 80 kg tabulated load. The factory table uses a conflicting rotation-speed unit, so model-specific values remain unconfirmed. A claimed remnant down to 30 mm and an auxiliary gripper for zero-remnant work require checks on the actual parts.
A 1.5, 3 or 6 kW source, manual, semi-automatic or automatic feeding, follow-up supports and an auxiliary gripper. We agree remnants, short-part cutting, unloading and protection using material, wall, section, batch and drawing information.
Discuss configuration
Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
