Suitable applications
Long frame members, heavy tube structures and large profile assemblies. Tube mass is only one factor: deflection, support distribution and safe reception of the cut part also matter.

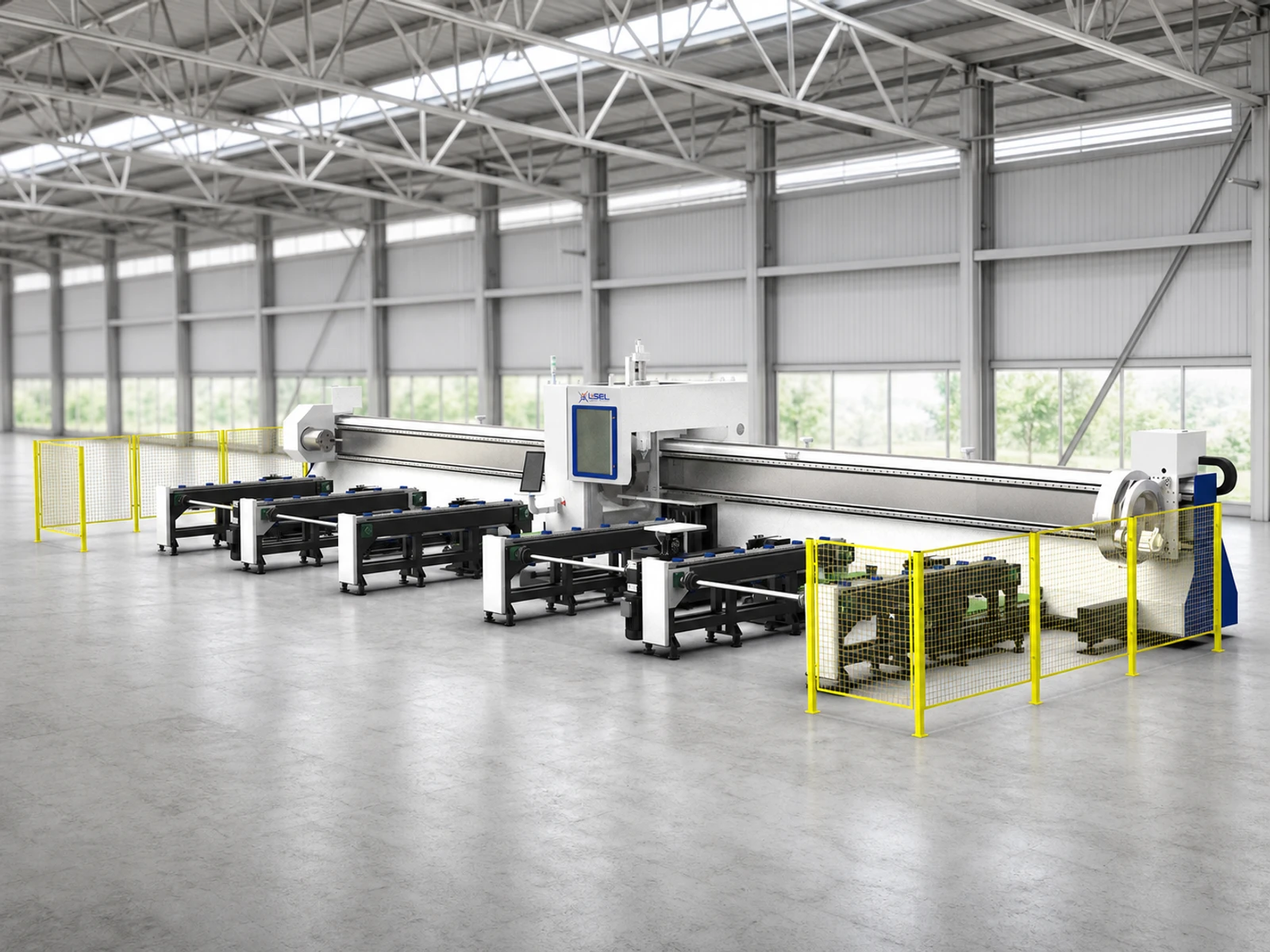

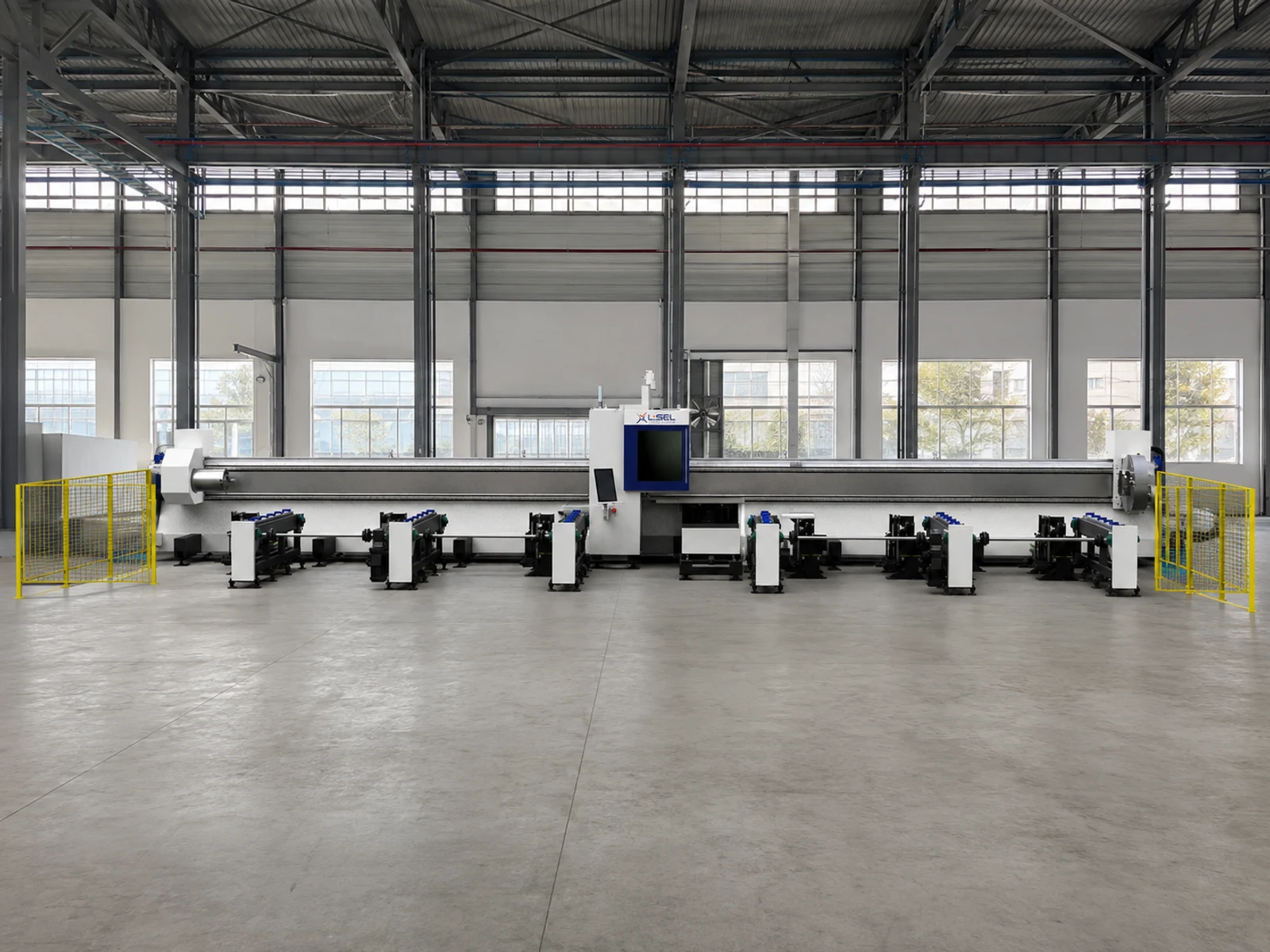

side-mounted three-chuck tube laser MK-T3C
The image is for reference. Actual appearance and configuration may vary.
- Effective cutting length, mm
- ≤12000
- Workpiece mass, kg
- ≤1200
- Chuck count
- 3
A side-mounted bed, three chucks and supports for long heavy tubes. The factory describes configurations handling whole tubes up to 12 m and 1200 kg.
Three chucks and auxiliary supports hold the material during feeding and cutting. A sectional bed and side-mounted clamping help organize access and transport of the system.
Purpose and distinguishing features
MK-T3C side-mounted three-chuck tube laser
MK-T3C combines side-mounted chucks with support for long heavy tubes. Its three-section bed affects transport and installation as well as machining. Agree cut-part receiving and the working sequence: maximum length and weight do not describe every profile position.
Technical specifications
| Model | Effective cutting length, mm | Workpiece mass, kg | Round tube, mm | Square tube, mm |
|---|---|---|---|---|
| MK-T3C | ≤12000 | ≤1200 | — | — |
| Chuck count | 3 |
|---|
Choosing a configuration
The 12 m and 1200 kg figures are series-offer limits that must be confirmed together for the actual blank. Round and square ranges in the public prose are ambiguous and are not presented as a verified specification.
We agree section, chucks, power, feeding and receiving area. Your parts are used to verify regripping, remnant, holes and downstream assembly requirements.
Discuss configuration
Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
