Suitable applications
Frames with sheet brackets, enclosures, railings and small mixed batches. If sheet and tube work need constant parallel capacity, we compare this system with two separate machines.

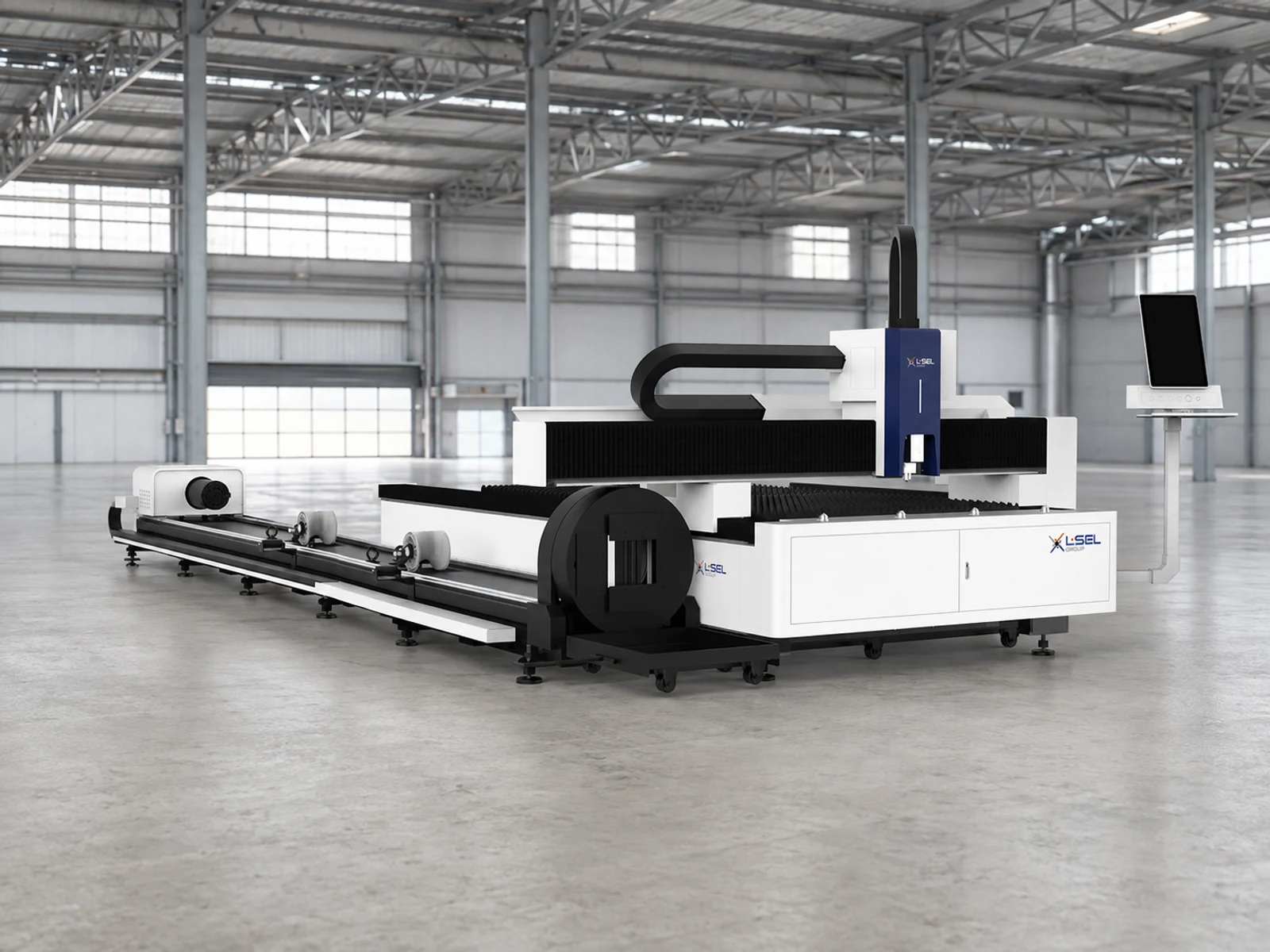

combined sheet-and-tube laser MK-ST
The image is for reference. Actual appearance and configuration may vary.
- Source power, kW
- 1.5–30
- Round tube, mm
- 10–230
- Layout
- Sheet and tube
MK-3015ST, MK-4015ST, MK-6015ST, MK-4020ST, MK-6020ST, MK-6025ST, MK-8025ST
An open sheet bed and tube module in one system. For mixed jobs requiring flat and profile parts.
The gantry serves the sheet area and the side tube module with two chucks. Switching materials requires separate program, clamping and process preparation; two functions do not mean simultaneous independent cutting.
Purpose and distinguishing features
MK-ST combined sheet-and-tube laser
MK-ST adds tube capability to an open sheet bed. It suits kits containing flat parts and frame members when their orders can be alternated. Assess changeover and both material routes; a format-like identifier does not replace a confirmed working-area specification.
Technical specifications
| Model | Working area, mm | Source power, kW | Round tube, mm | Square tube, mm | Maximum travel speed, m/min |
|---|---|---|---|---|---|
| MK-3015ST | — | 1.5 / 2 / 3 / 6 / 12 / 20 / 30 | 10–230 | 10–230 | 100 |
| MK-4015ST | — | 1.5 / 2 / 3 / 6 / 12 / 20 / 30 | 10–230 | 10–230 | 100 |
| MK-6015ST | — | 1.5 / 2 / 3 / 6 / 12 / 20 / 30 | 10–230 | 10–230 | 100 |
| MK-4020ST | — | 1.5 / 2 / 3 / 6 / 12 / 20 / 30 | 10–230 | 10–230 | 120 |
| MK-6020ST | — | 1.5 / 2 / 3 / 6 / 12 / 20 / 30 | 10–230 | 10–230 | 120 |
| MK-6025ST | — | 1.5 / 2 / 3 / 6 / 12 / 20 / 30 | 10–230 | 10–230 | 120 |
| MK-8025ST | — | 1.5 / 2 / 3 / 6 / 12 / 20 / 30 | 10–230 | 10–230 | 120 |
| Positioning accuracy, mm | ±0.05 |
|---|---|
| Positioning repeatability, mm | ±0.03 |
| Chuck count | 2 |
Choosing a configuration
The table lists seven factory codes, 1.5–30 kW sources and 10–230 mm tube sections. It does not specify sheet working areas, which are not decoded from model names. Travel speeds differ between model groups.
We agree sheet format, tube-module length, source, supports and extraction. Share the proportion of sheet and tube work to assess changeovers and the job queue.
Discuss configuration
Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
