Suitable applications
Sheet parts and tube elements for metal structures. We compare the combined system’s workload with two separate machines: these are different throughput scenarios.
combined sheet and tube laser GAR

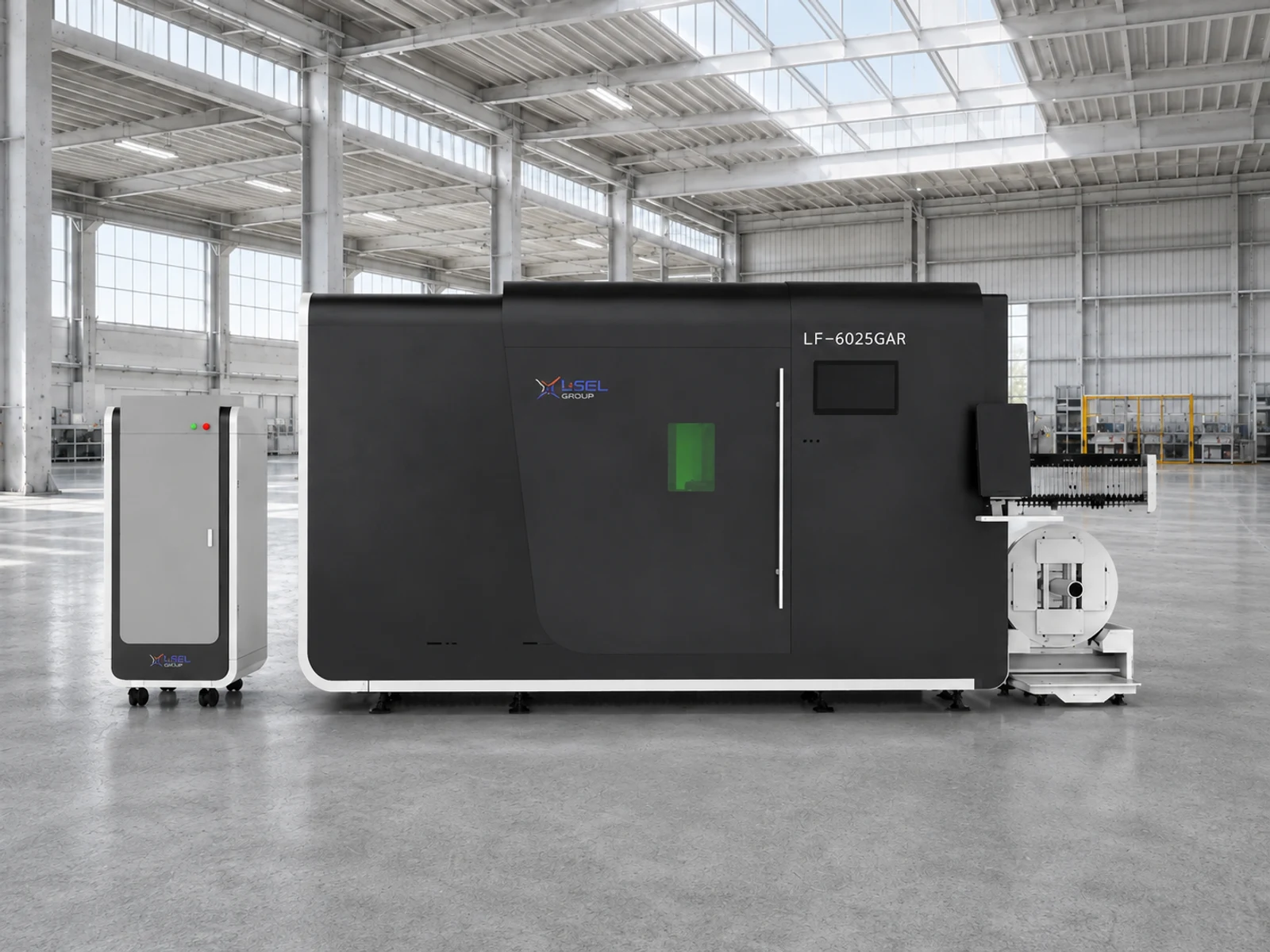

The image is for reference. Actual appearance and configuration may vary.
- Source power, kW
- 1.5–12
- Round tube, mm
- 20–240
- Layout
- Sheet and tube
LF3015GAR, LF4020GAR, LF6025GAR, LF8025GAR
A sheet cutting zone with exchange tables and a tube module in one system. For manufacturers processing both types of stock.
GAR combines an exchange-table sheet area with a pneumatically clamped tube module. It supports different operations for one assembly, such as cutting sheet plates and preparing a tube frame. Shared machine time must still be allocated between the two stock types. Tube work requires agreement on supports, remnant and unloading; sheet work requires a format, table-exchange workflow and access for preparing the next blank.
Purpose and distinguishing features
GAR combined sheet and tube laser
GAR combines an enclosed exchange-table sheet machine with a tube module. It suits assemblies containing panels and profiles, but does not represent two independent machines. Schedule sheet and tube orders and check loading access to both areas before selecting the system.
Technical specifications
| Model | Working area, mm | Source power, kW | Round tube, mm | Square tube, mm | Dimensions L × W × H, mm |
|---|---|---|---|---|---|
| LF3015GAR | 3050 × 1530 | 1.5 / 2 / 3 / 4 / 6 | 20–240 | 20–240 | 9500 × 3760 × 2524 |
| LF4020GAR | 4050 × 2030 | 1.5 / 2 / 3 / 4 / 6 / 12 | 20–240 | 20–240 | 11500 × 4260 × 2254 |
| LF6025GAR | 6050 × 2530 | 1.5 / 2 / 3 / 4 / 6 / 12 | 20–240 | 20–240 | 14140 × 5015 × 2254 |
| LF8025GAR | 8050 × 2530 | 1.5 / 2 / 3 / 4 / 6 / 12 | 20–240 | 20–240 | 19175 × 6650 × 2524 |
| Positioning repeatability, mm | ±0.02 |
|---|
Choosing a configuration
First compare the monthly sheet and tube programmes. A combined system may suit uneven mixed workloads, while substantial independent flows warrant comparison with two dedicated machines. Check power against the selected format: the 12 kW choice listed for larger models is not transferred to LF3015GAR. Plan total space around both working areas, access aisles, auxiliary systems and finished-part flow.
Sheet format, tube stock, source, tube support and loading logistics. Two zones do not imply simultaneous independent sheet and tube cutting.
Discuss configuration
Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
Discuss configurationAlso in the catalogue
LF3015CNR
Combined sheet and tube laser
An open 3050 × 1530 mm sheet table with a tube module. One system for production that makes both sheet components and structural tube parts.
- Working area, mm
- 3050 × 1530
- Source power, kW
- 1–12
- Layout
- Sheet and tube
LF3015GCR
Exchange-table sheet and tube laser
A 3050 × 1530 mm sheet area with exchange platforms and a tube-cutting module. For mixed production that needs to prepare the next sheet outside the active cutting zone.
- Working area, mm
- 3050 × 1530
- Source power, kW
- 1–12
- Layout
- Sheet and tube
LF3015LNR, LF6025LNR
Versatile sheet and tube laser
An open combined system with two sheet formats. Its pneumatic tube module handles round and square stock within the published 20–240 mm envelope.
- Formats, mm
- 3050 × 1530 / 6050 × 2530
- Source power, kW
- 1–12
- Round tube, mm
- 20–240
