exchange-table sheet-and-tube laser MK-ET

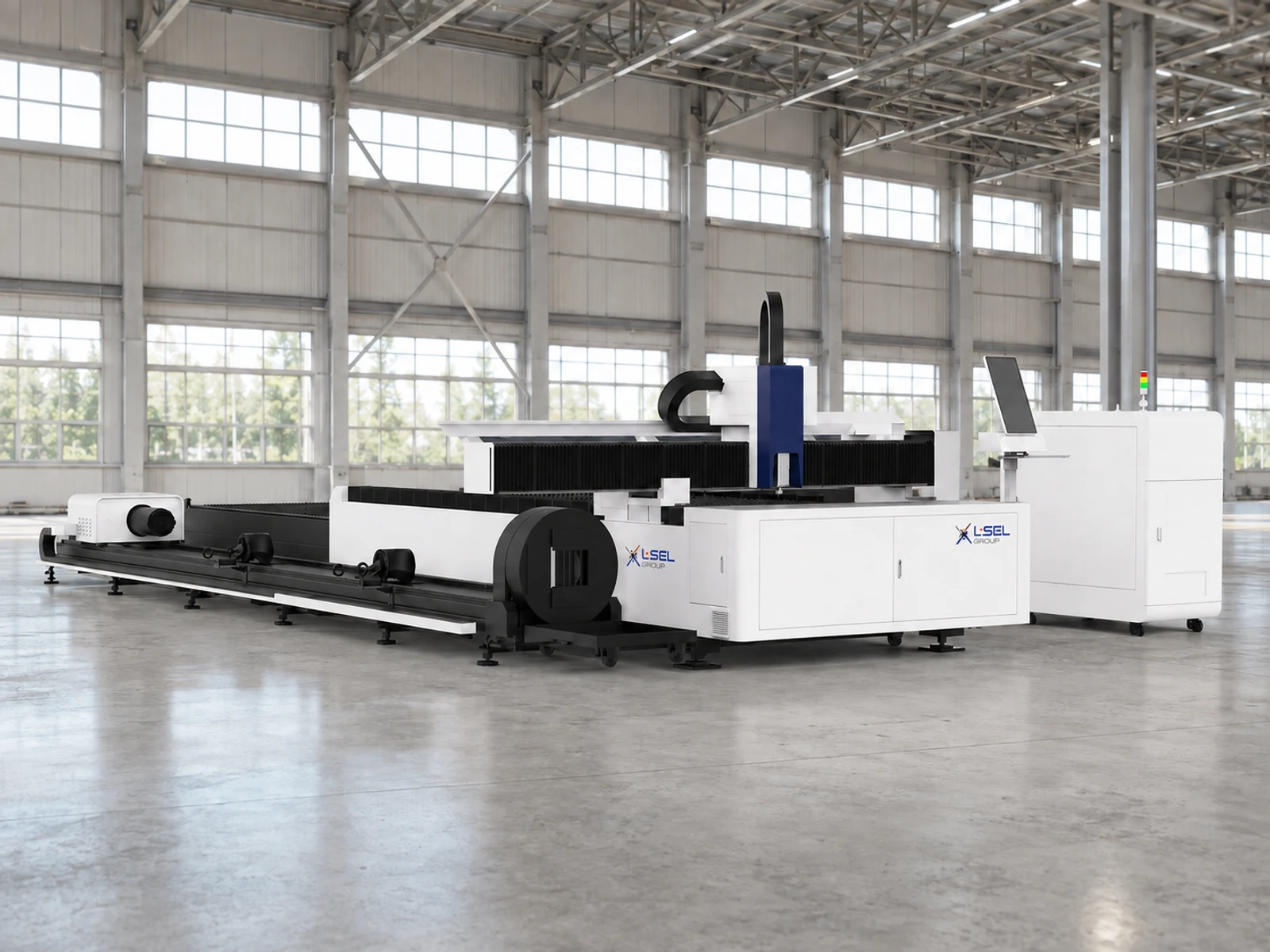

The image is for reference. Actual appearance and configuration may vary.
- Source power, kW
- 1.5–30
- Round tube, mm
- 20–230
- Formats, mm
- 3000 × 1500 — 6000 × 2000
MK-3015ET, MK-4020ET, MK-6020ET
A combined system with two sheet platforms and a side tube laser. For mixed production with regular sheet cutting.
Exchange tables separate preparation of the next sheet from the working area. The tube module adds profile rotation and feed. Changeover time depends on the program, clamping and material flow.
Purpose and distinguishing features
MK-ET exchange-table sheet-and-tube laser
MK-ET extends combined processing with exchange sheet platforms. Sheet preparation can occur away from the active table, but tube orders still use the shared system's time. Agree sheet format, tube stock length and job sequencing separately.
Technical specifications
| Model | Working area, mm | Source power, kW | Round tube, mm | Square tube, mm | Effective cutting length, mm |
|---|---|---|---|---|---|
| MK-3015ET | 3000 × 1500 | 1.5 / 2 / 3 / 6 / 12 / 20 / 30 | 20–230 | 20–230 | 3000 / 4000 / 6000 |
| MK-4020ET | 4000 × 2000 | 1.5 / 2 / 3 / 6 / 12 / 20 / 30 | 20–230 | 20–230 | 3000 / 4000 / 6000 |
| MK-6020ET | 6000 × 2000 | 1.5 / 2 / 3 / 6 / 12 / 20 / 30 | 20–230 | 20–230 | 3000 / 4000 / 6000 |
| X/Y/U positioning accuracy, mm | 0.03 |
|---|---|
| X/Y/U repeatability, mm | 0.02 |
| Combined X/Y positioning speed, m/min | 120 |
| Maximum U-axis travel speed, m/min | 30 |
| Chuck count | 2 |
Choosing a configuration
Three working areas are specified: 3000 × 1500, 4000 × 2000 and 6000 × 2000 mm. The table lists 20–230 mm tubes and 3/4/6 m cutting-length options. Combined X/Y travel at 120 m/min and U travel at 30 m/min are distinct values.
We select bed, tube module, source and feeding for your batches. Permitted mass, tube remnant, protection of both areas and service access are checked before ordering.
Discuss configuration
Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
