The image is for reference. Actual appearance and configuration may vary.
GKS-CPL3015B, GKS-CPLS6015B
Uncoiling, levelling and laser cutting in one material route. For repeat thin-sheet parts suited to production from coiled metal.

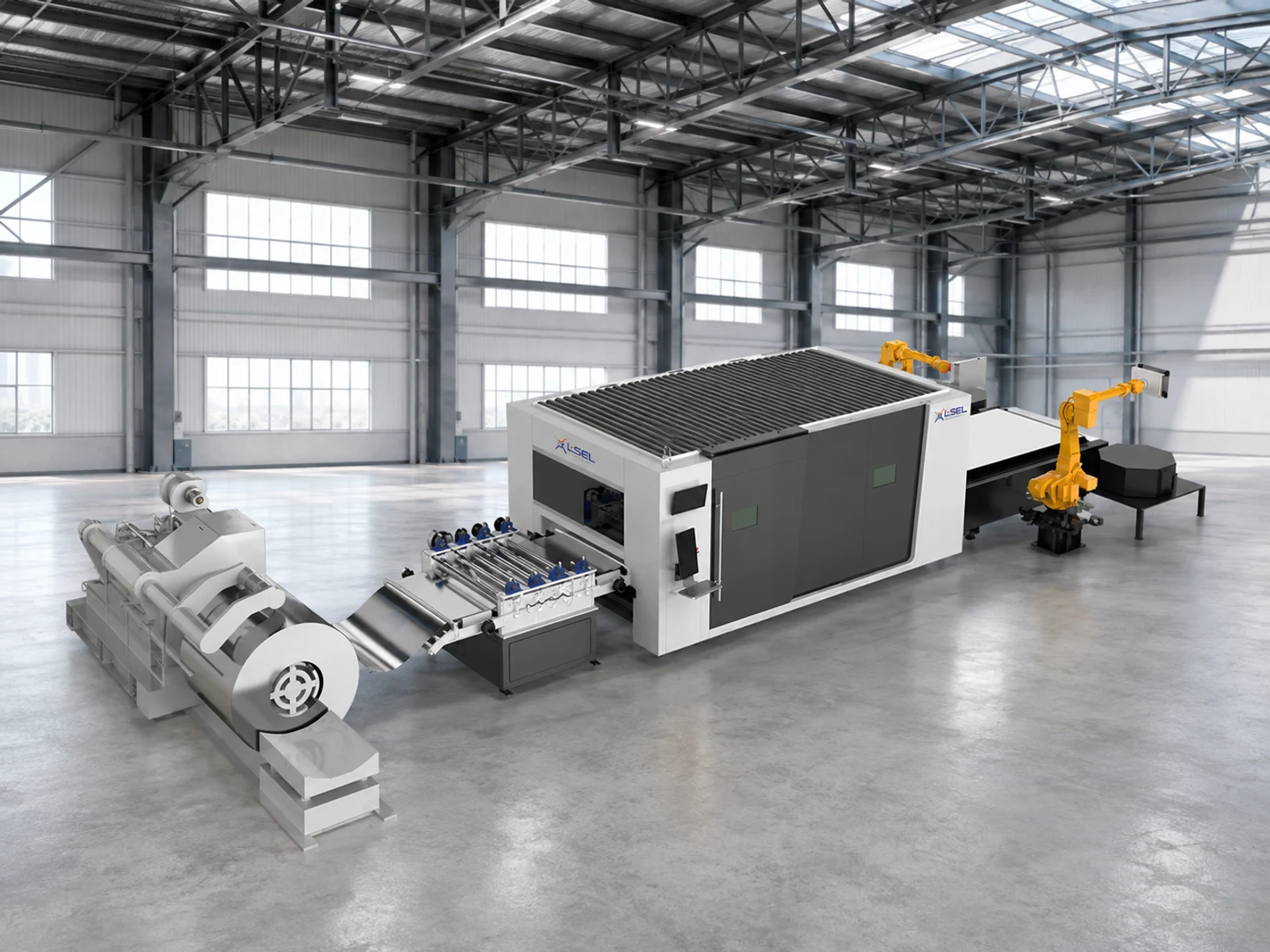

The uncoiler feeds a levelling and feeding unit, followed by an enclosed cutting zone and unloading section. This sequence reduces separate sheet-preparation operations. The working area, feed and nesting must be coordinated: a coil does not by itself guarantee continuous cutting of every contour.
Enclosure blanks, panels, ventilation parts and repeat thin-steel components. Selection depends on strip width, material, flatness after levelling and nesting. A separate sheet laser may be more convenient for one-off jobs with frequent material changes.
CPL3015B feeds coil through uncoiling and levelling before laser cutting. Unlike a sheet bed, selection depends on metal grade, strip thickness, width and residual waviness. Output depends on coordinated feeding and cutting, not uncoiler speed in isolation.
| Model | Working area, mm | Source power, kW | Dimensions L × W × H, mm |
|---|---|---|---|
| GKS-CPL3015B | 3000 × 1500 | 1–6 | — |
| GKS-CPLS6015B | 6000 × 1500 | 1–6 | 16000 × 4000 × 2100 |
| Coil width, mm | 500–1500 |
|---|---|
| Coil inner diameter, mm | 508–610 |
| Coil outer diameter, mm | 800–1500 |
| Coiled carbon steel thickness, mm | 0.8–3 |
| Coiled stainless steel thickness, mm | 0.8–2 |
| Maximum coil weight, t | 10 |
| Strip feed speed, m/min | 0–20 |
| Positioning accuracy, mm/m | ±0.05 |
| Positioning repeatability, mm | ±0.03 |
| Maximum acceleration, g | 1 |
| Maximum travel speed, m/min | 120 |
The table lists two factory formats. Coils are up to 10 t and 500–1500 mm wide; thickness ranges differ for carbon and stainless steel. Feed speed of 0–20 m/min is not cutting speed. Positioning accuracy is stated in mm/m, not as a finished-part tolerance. The smaller model's dimensions require confirmation because the published unit is ambiguous.
A 1–6 kW source, leveller, feed, unloading, extraction and safe coil-handling area. Send materials, thicknesses, coil width, drawings and batch sizes so we can check nesting, remnants, flatness and an actual production cycle.
Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
Discuss configuration
