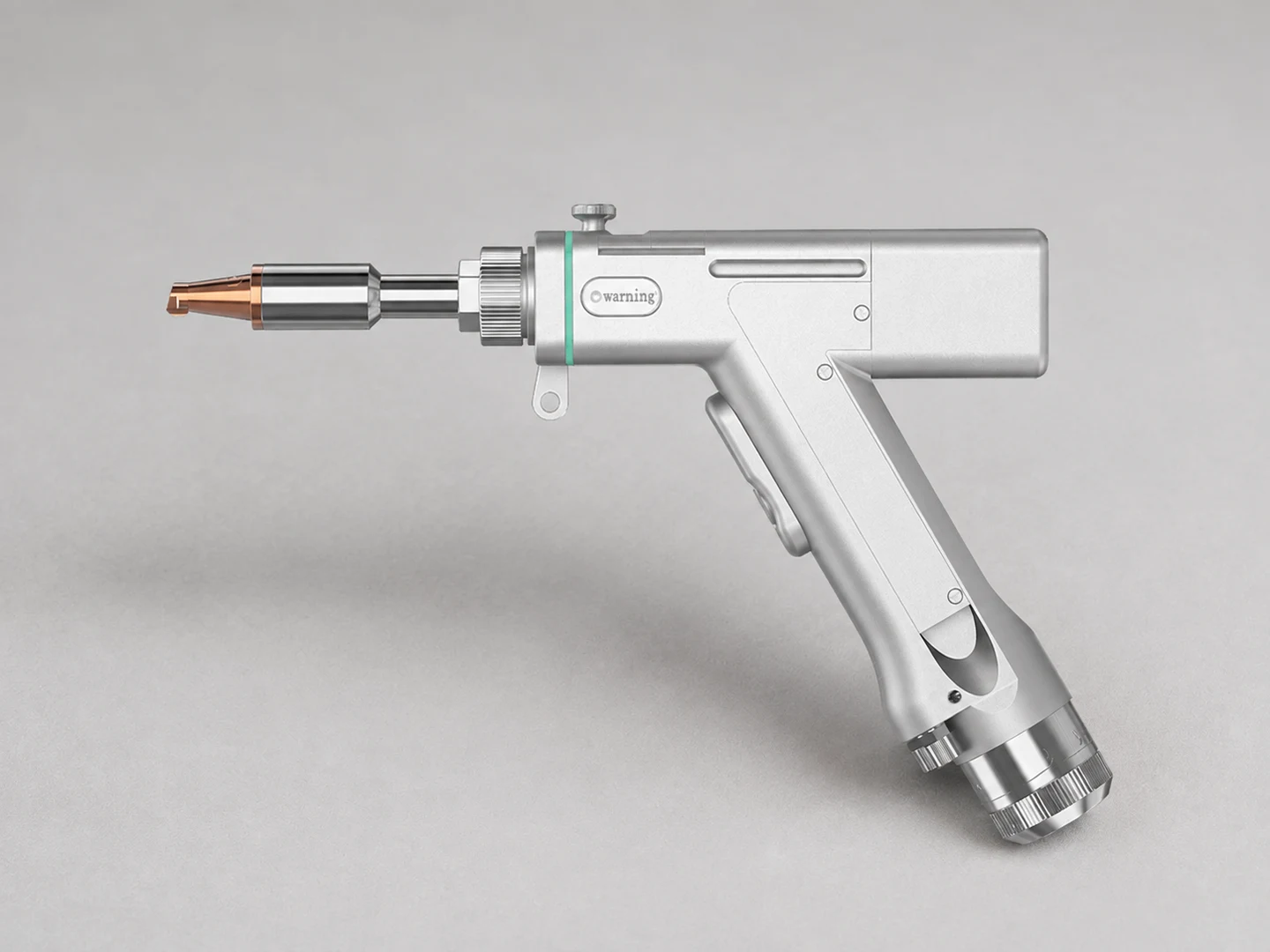

Example product in this category. The studio background is retouched; the version and supplied items are confirmed on request.
Replacement handheld heads, optics and wear parts. We check compatibility with the controller, source and cooling system.
The photo shows a SUP23T example. It is not a universal replacement for any welder: we check the head, control board and connections before ordering.
A handheld head delivers the beam and shielding gas to the joint, while its optics form the processing area. Results depend on the source, head, wire feed and safety systems working together. Replacing the head alone does not automatically increase power or add new machine modes.
A handheld welding head is selected together with its controller, source, cooling and wire feed. A matching optical connector does not establish full compatibility. Replacing SUP23T or another head also requires checking control signals and protection functions.
| Parameter | SUP23T example | What to check |
|---|---|---|
| Permitted power | Up to 3000 W | Source and head version |
| Protective window | Ø18 × 2 mm | Cassette and part number |
| Collimating / focusing | D16 F60 / D20 F150 | Optical set |
| Cooling | Water | Circuit and connections |
Send the current head and controller models, source power and connection photos.
Confirm whether you need a complete assembly or only a nozzle, optics, holder or cable.
Installation, interlock checks and setup require a qualified specialist. Protective equipment and a properly organised work area remain essential.
Send the machine and head model, photographs of the markings and part, its dimensions and the quantity required. If replacing a faulty assembly, briefly describe the symptoms. Price and lead time on request. We check compatibility and confirm the required version before ordering.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
Select a part and request a price: Welding heads
Copper nozzles, guides and replaceable tips for handheld welding heads. Matched to the head, joint and wire-feed arrangement.
Feeders, rollers and guides for laser welding. We select a complete assembly or individual component for the wire material and diameter.
Wire-feed conduits, guide liners and gas and cooling lines. Selected by function, length and connections.
