Suitable applications
Brackets, connection plates, angles, frame components and steel structures. Operation and tooling are chosen for the section and material; individual station capacities cannot be added together.

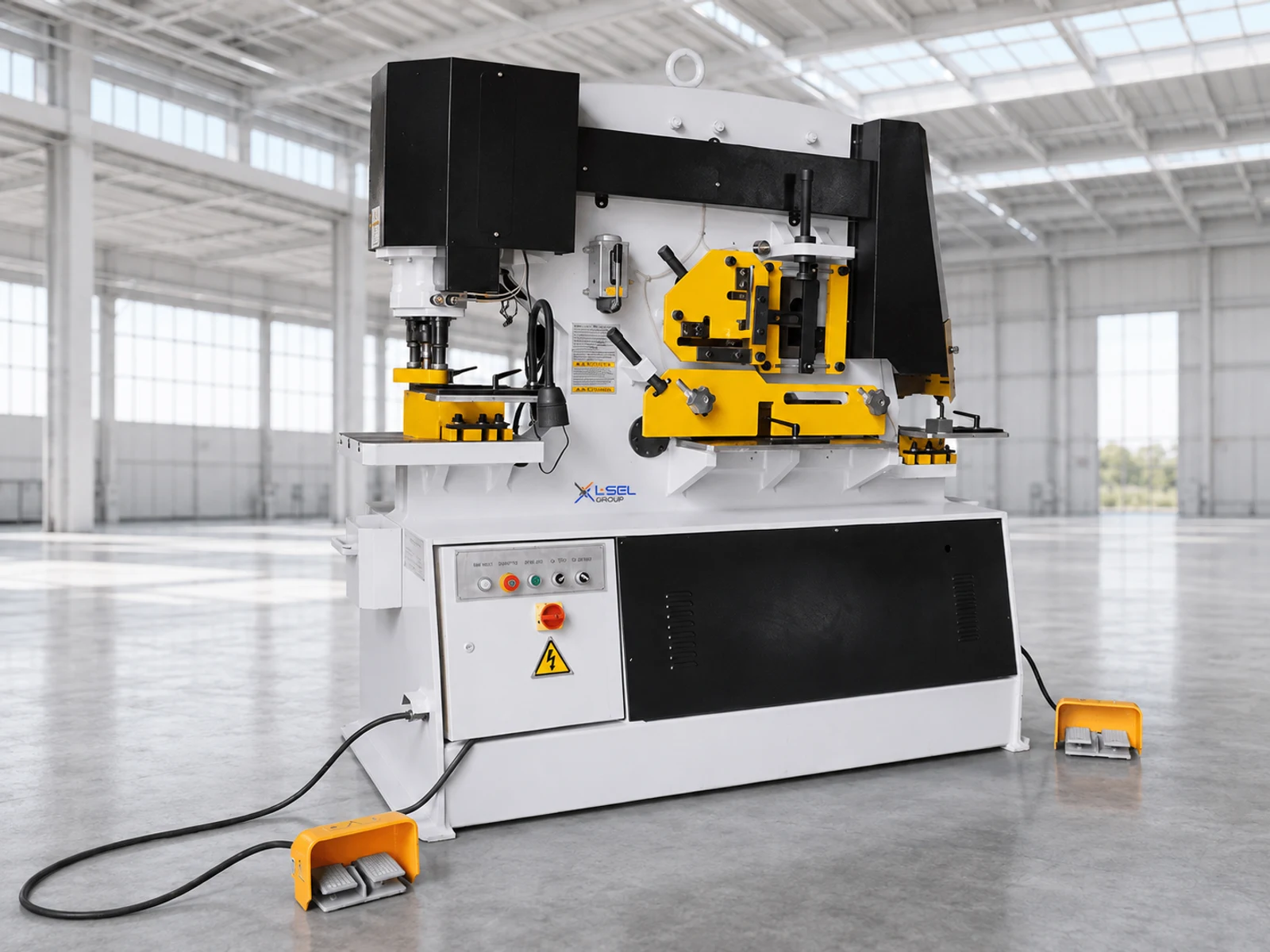

hydraulic ironworkers Q35Y
The image is for reference. Actual appearance and configuration may vary.
- Force, t
- 50–250
- Punching diameter, mm
- 25–40
- Material strength, N/mm²
- ≤450
Q35Y-50, Q35Y-60, Q35Y-90, Q35Y-120, Q35Y-160, Q35Y-200, Q35Y-250
Hole punching, flat-bar and section shearing, and notching on one machine. A family for blank-preparation operations on different metal stock.
A hydraulic drive serves stations fitted with punches, dies and blades. Different sections require suitable tooling. Hold-downs and supports secure the workpiece, with access to the active station controlled according to operating instructions.
Purpose and distinguishing features
Q35Y hydraulic ironworkers
Q35Y combines several metal-preparation stations, each with its own capacity and tooling. Punching force does not describe the ability to shear every section. For bracket or plate batches, check hole size, edge distance, stop access and the required punches.
Technical specifications
| Model | Force, t | Tabulated shearing thickness, mm | Material strength, N/mm² | Shearing angle | Shearing per stroke: thickness × width, mm | Ram stroke, mm | Strokes per minute | Throat depth, mm | Punching thickness, mm | Punching diameter, mm | Main motor, kW | Dimensions L × W × H, mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Q35Y-50 | 50 | 12 | ≤450 | 7° | — | 35 | 10-18 | 115 | 12 | 25 | 4 | 950×550×1800 |
| Q35Y-60 | 60 | 16 | ≤450 | 7° | 16×250 / 8×400 | 80 | 9-25 | 300 | 16 | 25 | 5.5 | 1640×730×1770 |
| Q35Y-90 | 90 | 20 | ≤450 | 8° | 20×330 / 10×480 | 80 | 12-28 | 355 | 20 | 30 | 7.5 | 1860×800×1900 |
| Q35Y-120 | 120 | 25 | ≤450 | 8° | 25×330 / 16×600 | 80 | 12-28 | 400 | 25 | 35 | 11 | 2355×960×2090 |
| Q35Y-160 | 160 | 30 | ≤450 | 8° | 30×335 / 20×600 | 80 | 12-28 | 600 | 28 | 28 | 11/15 | 2680×1040×2300 |
| Q35Y-200 | 200 | 40 | ≤450 | 8° | 35×400 / 25×700 | 80 | 10 | 600 | 35 | 40 | 15/18.5 | 2970×1240×2350 |
| Q35Y-250 | 250 | 50 | ≤450 | 8° | 40×400 / 30×750 | 80 | 10 | 600 | 40 | 40 | 18.5/22 | 3000×1440×2450 |
Choosing a configuration
The factory table specifies material strength up to 450 N/mm². Maximum punching diameter and thickness are not necessarily available simultaneously. Maximum shearing thickness is likewise not full-blade-width capacity: separate thickness × width pairs are listed.
Force, required stations, punches and dies, section blades, stops and supports. Send hole drawings, edge distances, section sizes and material grade. We check throat access, tooling and the operation without transferring limits from another station.
Discuss configuration
Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
