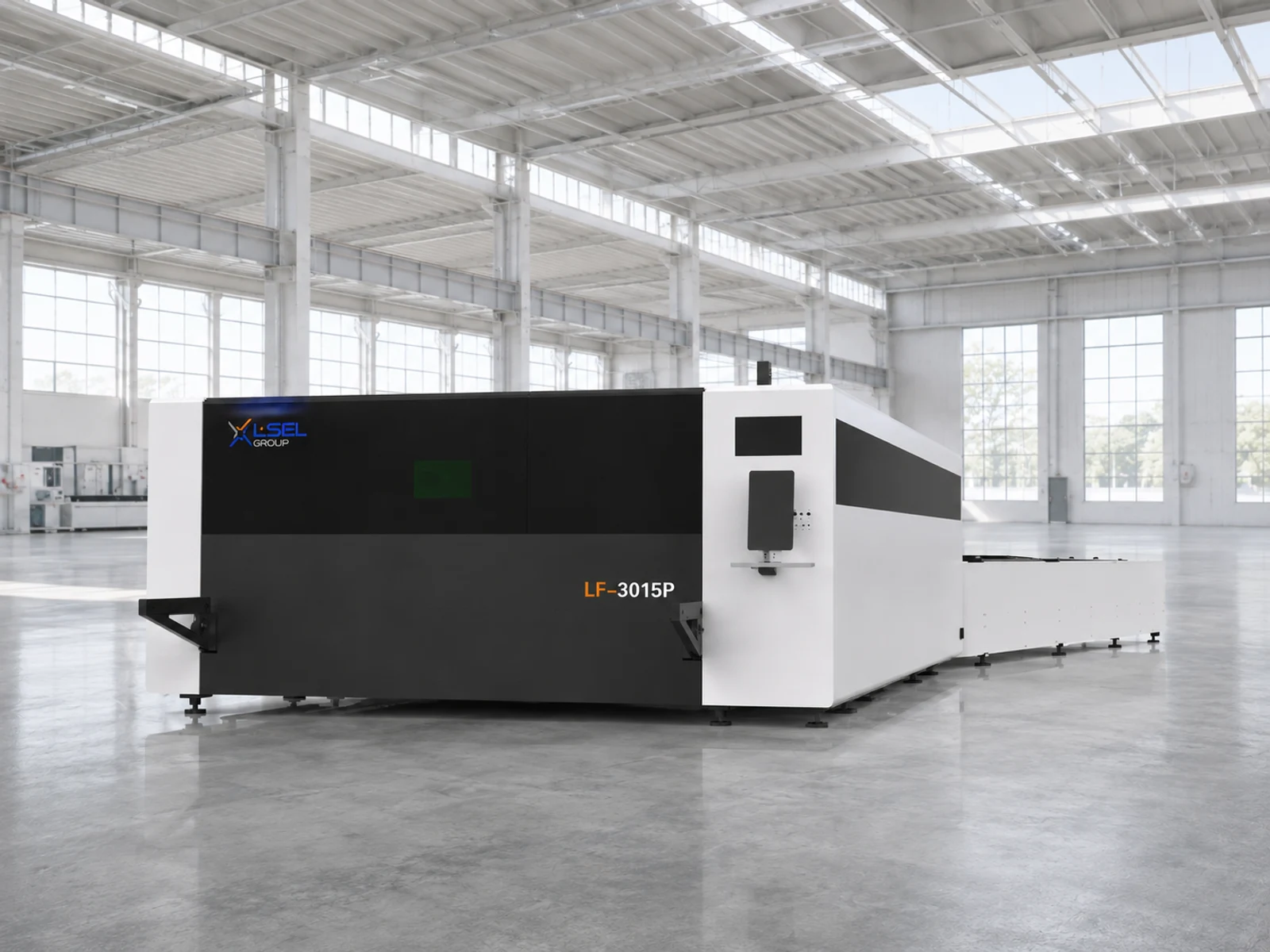

The image is for reference. Actual appearance and configuration may vary.
An enclosed machine with a 3000 × 1500 mm working area and a source in the 1–6 kW range. For standard-sheet cutting where a protective enclosure and compact work area are needed.
The enclosure separates laser cutting from the surroundings. It works with interlocks and fume extraction; protection is assessed as a complete system. Factory data lists a machine weight of 3.15 t, which matters for delivery, unloading and foundation preparation.
Enclosures, electrical products, cladding and other sheet blanks for subsequent assembly or bending. The format and 500 kg load limit must be checked against the actual weight of your sheets. Processing capability in a particular metal is verified for the selected power and gas.

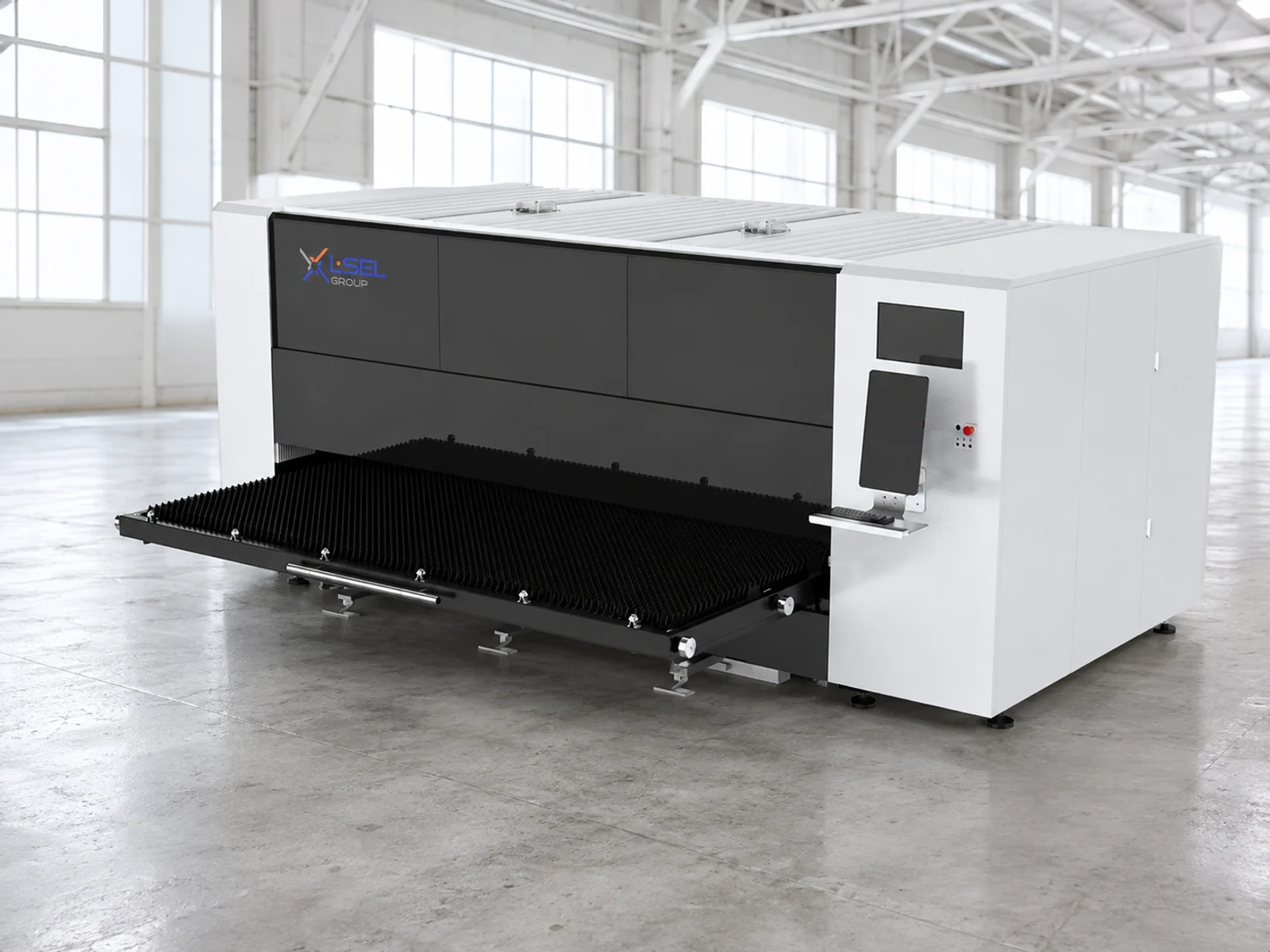

LF3015P has a pull-out working platform: load the sheet with the table exposed, then cut inside the enclosure. It is not the pair of exchange tables used by GA. Allow room for full platform withdrawal and account for loading pauses between programs.
| Model | Working area, mm | Source power, kW | Workpiece mass, kg |
|---|---|---|---|
| LF3015P | 3000 × 1500 | 1–6 | 500 |
| Positioning accuracy, mm | ±0.03 |
|---|---|
| Positioning repeatability, mm | ±0.02 |
| Maximum travel speed, m/min | 80 |
| Maximum acceleration, g | 1 |
| Dimensions L × W × H, mm | 4700 × 3330 × 2415 |
| Machine weight, t | 3.15 |
We compare P with an open machine and a larger exchange-table system according to workshop conditions, batches and loading method. Before ordering, we check sheet movement, operator access and space for the chiller and extraction. A trial cut using your parts helps assess edge quality and actual production time.
Source power and manufacturer, cutting head, cooling, extraction, gas supply and working-area access. Site planning includes loading and service space, not only the 4700 × 3330 × 2415 mm machine dimensions. Electrical connection is confirmed from the exact configuration's documentation.
Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
