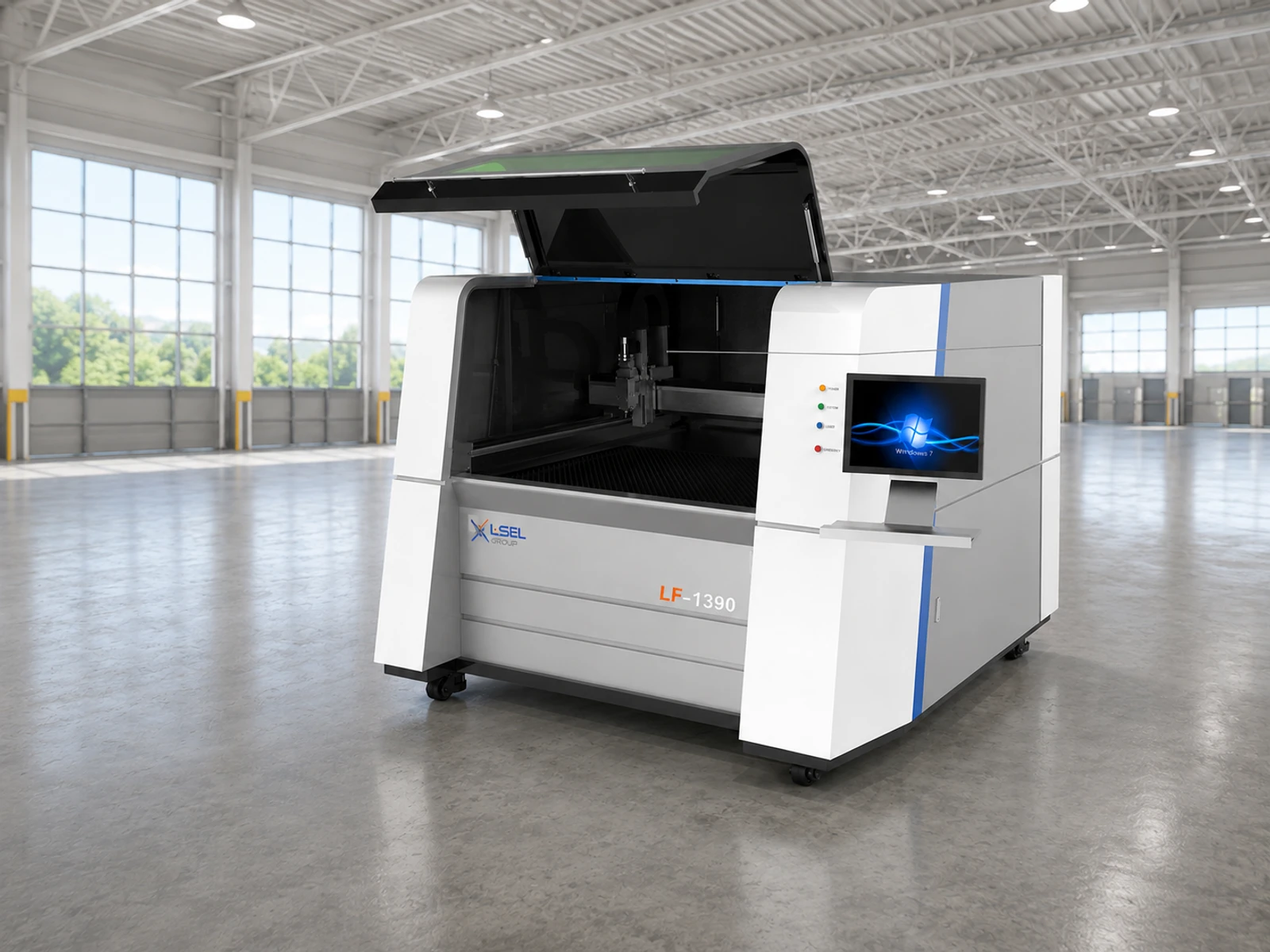

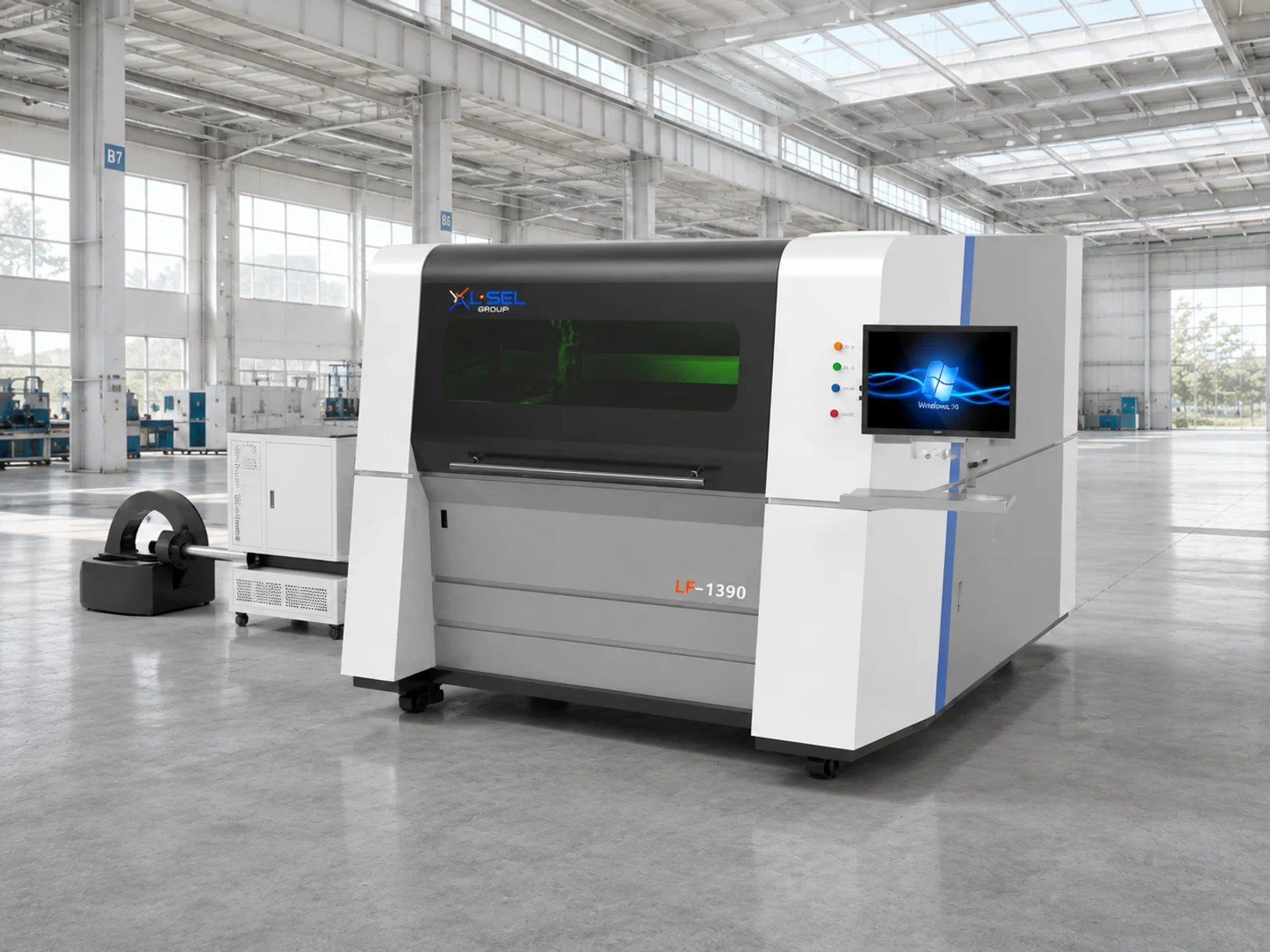

The image is for reference. Actual appearance and configuration may vary.
A 1300 × 900 mm working area for smaller sheet parts. An enclosed body and screw drives suit a cell where a standard full-size sheet laser does not match the main product dimensions.
The enclosure separates the cutting zone from access routes. Screw drives and dual Y-axis guides support controlled gantry motion. An autofocus cutting head is set for the material and thickness; the actual head and drive package are specified for the ordered machine.
Instrument panels, small enclosure components, brackets, decorative contours and blanks for electronics and machinery. We match the format to stock actually arriving at the cell: a large purchased sheet may need preliminary cutting to size.
LF1390 sits between a small work area and a standard sheet bed. Its format suits smaller panels and blanks, but full-size sheets require separate preparation. Include upstream blank cutting and remnant utilisation when assessing the complete material route.
| Model | Working area, mm | Source power, kW |
|---|---|---|
| LF1390 | 1300 × 900 | 0.5 / 0.8 / 1 / 2 / 3 |
| Positioning repeatability, mm | ±0.02 |
|---|---|
| Maximum travel speed, m/min | 40 |
| Maximum acceleration, g | 0.5 |
We assess parts per blank, smallest holes, heat effects and edge requirements. Rated ±0.02 mm repeatability refers to machine positioning, not a guaranteed tolerance on every finished part. Power is evaluated on representative contours, particularly when processing thin metal.
A 0.5–3 kW source from the listed variants, cutting head, gas supply, cooling and fume extraction. Allow loading access, maintenance space and checks of protective interlocks. An enclosure does not remove extraction or laser-safety requirements.
Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
Discuss configuration
