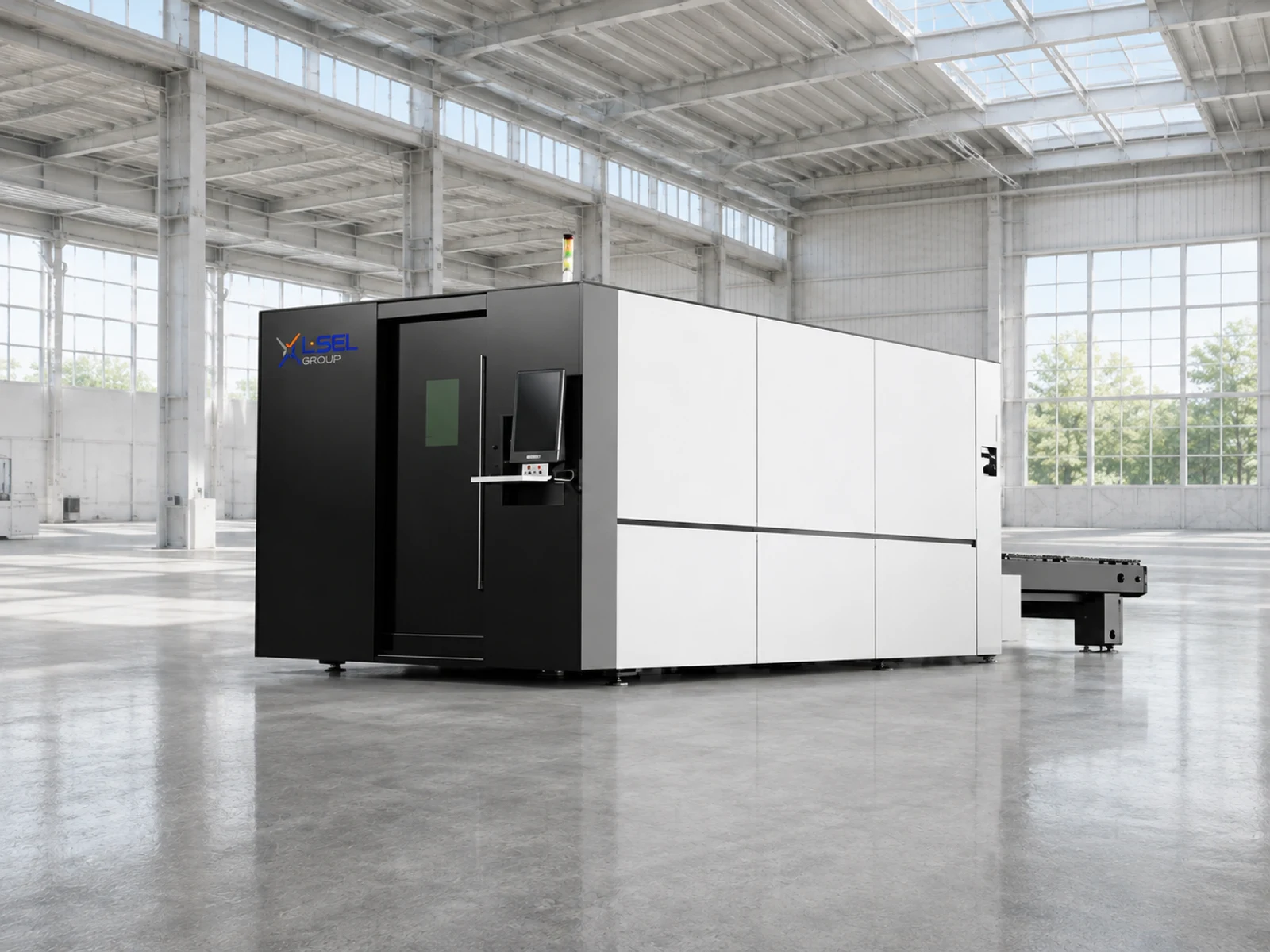

The image is for reference. Actual appearance and configuration may vary.
A third-generation sheet series with an enclosure, exchange platforms and 3, 6 or 12 kW power. For organised cutting with the next sheet prepared outside the active cutting zone.
Two platforms allow a sheet to be prepared or completed parts to be removed on the external table while cutting continues inside the enclosure. This reduces the impact of auxiliary operations only when material supply and operator work are organised accordingly. The enclosure needs functioning extraction, interlocks and scheduled maintenance.
Repeated batches of enclosure parts, panels, brackets and structural metal components. Three working formats allow selection around purchased sheet. GA III is a distinct series: specifications and configuration must not be copied from the earlier GA simply because their designations are similar.
Treat GA III as a distinct generation, not another name for GA. Its enclosure and exchange platforms support a similar workflow, but power, working areas and assemblies must match the GA III table. A listed format does not establish an unconfirmed model code.
| Model | Working area, mm | Source power, kW |
|---|---|---|
| GA III · 3050 × 1500 | 3050 × 1500 | 3 / 6 / 12 |
| GA III · 4050 × 2030 | 4050 × 2030 | 3 / 6 / 12 |
| GA III · 6050 × 2530 | 6050 × 2530 | 3 / 6 / 12 |
| Positioning accuracy, mm | ±0.03 |
|---|---|
| Positioning repeatability, mm | ±0.02 |
| Maximum travel speed, m/min | 120 |
| Maximum acceleration, g | 1.5 |
To choose between GA and GA III, we compare the exact specification, working area, processing conditions for your materials and available options. The smaller GA III format has a 3050 × 1500 mm field, not the 3050 × 1530 mm listed for GA. Account for such differences before purchasing sheet and preparing cutting programs.
Working area, power, head, cooling, gas supply, extraction and table exchange workflow. Table variants are grouped by working area. The exact factory designation and equipment of the selected configuration are recorded in the specification.
Send a drawing or photograph of the part, material, thickness, blank size and required output. This lets us compare configurations against your job, not just their power rating.
Tell us what you would like to clarify. Add drawings, photos or the required configuration reference to your request if available.
Discuss configuration
